Note:
Do not open the Leveloader case. Opening the unit will void the manufacturer's warranty.
Note:
Leveloader Gold uses a 9V battery. If the battery gauge on the Leveloader is low, replace the battery with either an alkaline or lithium. Access the battery by unscrewing the battery hatch.

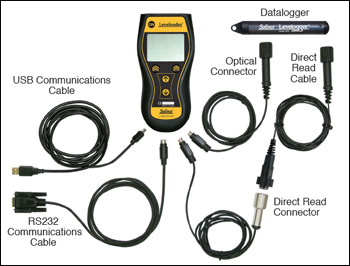

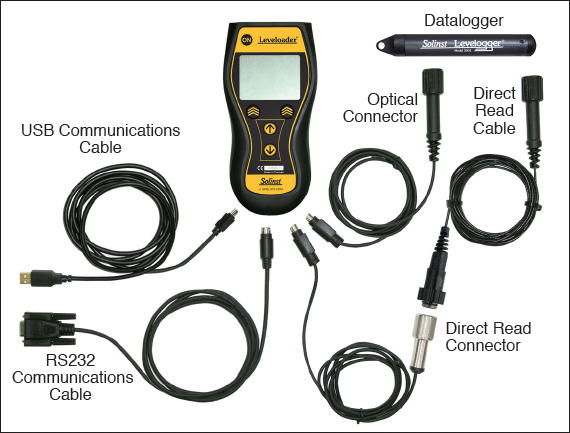

Bottom View
showing Connections
6 Hardware

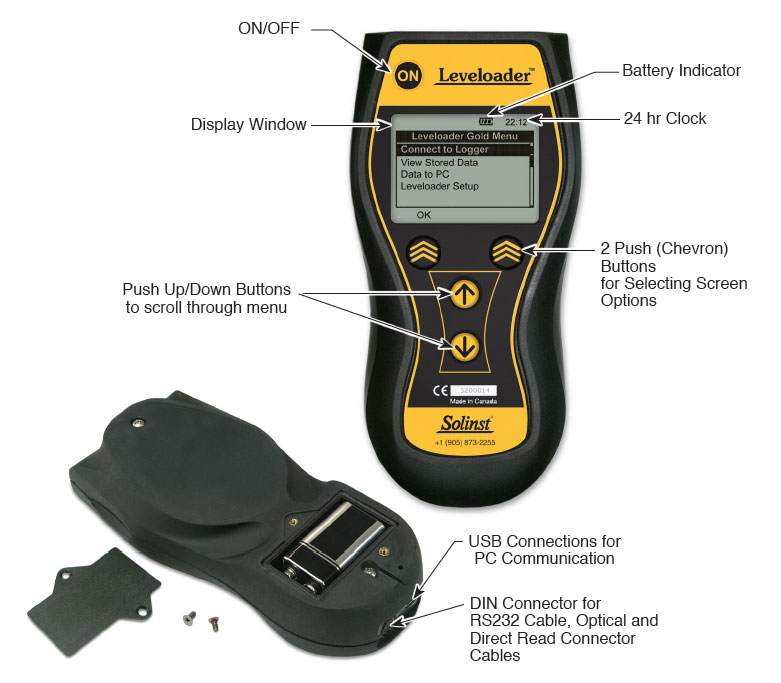

Figure 6-1 illustrates the Leveloader Gold and the key functions of each component
Figure 6.1 Leveloader Gold
(Click image to enlarge to full size)
