Figure 9-1 shows the main window of Levelogger Software Version 4.0.2. To access the Leveloader options from the software window, click on the 'Leveloader' tab.
To begin communication between the Leveloader and the PC, turn the Leveloader on and connect the Leveloader using either the supplied USB or RS232 cable. Select the proper communications port that the Leveloader is connected to using the drop down 'Com Port' selection window. Select the 'Data to PC' option from the Leveloader main menu. Click the 'Retrieve Leveloader Settings' icon  in the software.

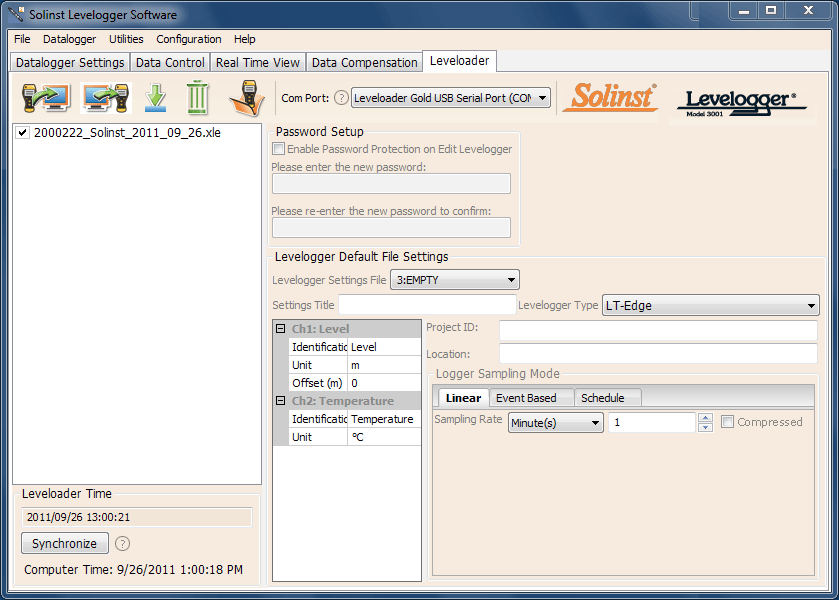

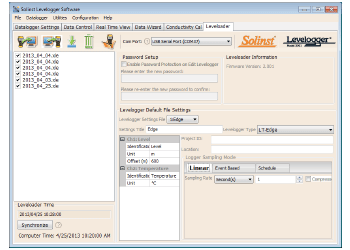

Figure 9-1 Leveloader Tab
(Click image to enlarge to full size)
When the Leveloader Gold is connected to the PC, the window on the left of the Leveloader tab will display the log files that are available for download. To download data from the Leveloader, select the file(s), then click the download data icon  .
A destination folder window will open where you can choose the location your log files will be saved. Click the 'OK' button to start the transfer process.

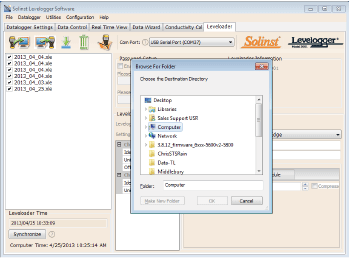

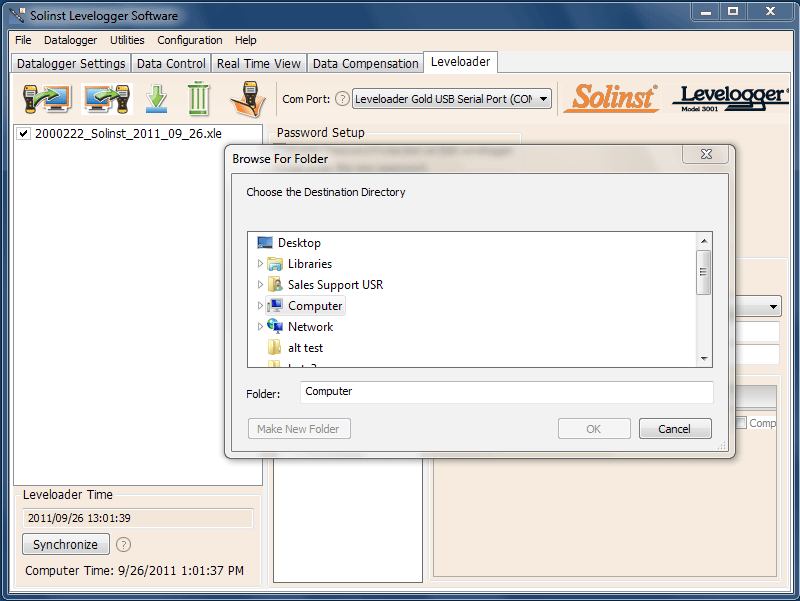

Figure 9-2 Log File Download
(Click image to enlarge to full size)
To view the log files, open the 'Data Control' tab. You can open the files using the open file icon  .
From here, you can also print data or export data to a .csv or .xml file.

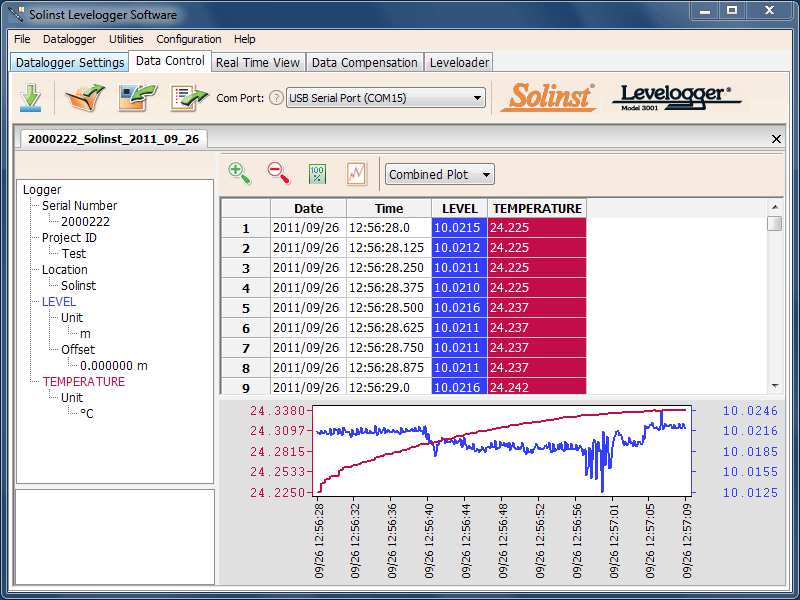

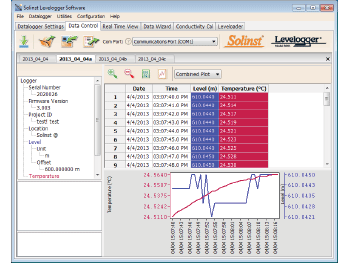

Figure 9-3 Data Control Window
(Click image to enlarge to full size)
|
|
Table of Contents
Note:
, you can choose the information you want to include in the file names of your downloaded data, e.g. start time, stop time, location and serial number.
