Water Level Meters

solinst  water level meters  measure depth of water in wells  water wells  boreholes  depth of water  depth of water in wells  depth of water in boreholes  depth of water in standpipes  water level indicators  water level indicator for piezometer image


For measuring the depth to water in wells, boreholes, standpipes, and tanks, Model 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter.

There are two versions to choose from. The Model 101 P7 Water Level Meter features a pressure-proof probe rated to 500 psi and laser marked PVDF flat tape.

The Model 101 P2 Water Level Meter features an easy-to-repair probe and heat embossed polyethylene flat tape.

Also available, are the less expensive Model 102 and 102M Coaxial Cable Water Level Meters for use in small diameter tubes, and the basic Model 101B Water Level Meter (see Model 102 and 101B Data Sheets). The Model 101D Water Level DrawDown Meter provides both depth to water and drawdown measurements using one probe (See Model 101D Data Sheet).

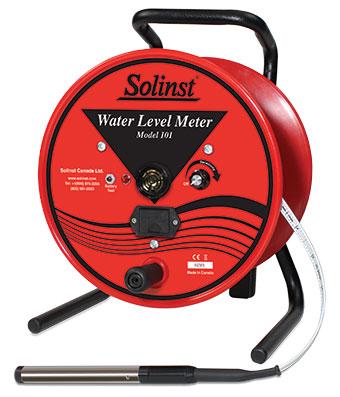

Model 101 P7 Water Level Meter Features

Accurate:

  • Markings each 1/100 ft. or millimeter
  • Traceable to national standards
  • Sensitivity adjustable to conductivity
  • Probes avoid false readings in cascading water
  •

    Reliable:

  • Permanent laser markings
  • Non-stretch PVDF flat tape with stainless steel conductors
  •

    Long Life:

  • Rugged, corrosion proof components
  • Strong, flexible tapes
  • Easy to splice and repair
  •

    Flexible:

  • PVDF replacement tapes are interchangeable with other meters
  •



    102 Water Level Indicator

    Solinst Model 102 Laser Marked Water Level Indicators have permanent, accurate laser etched markings every 1/100 ft or each millimeter. Providing Solinst quality at a low price, they have probes for use in tubes as small as 1/4" (6mm) in diameter, and a durable, flexible coaxial cable mounted on a sturdy reel. A 102M Mini Laser Marked Water Level Indicator is also available, in 80 ft or 25 m lengths on a small lightweight reel.

    The 102 Water Level Meters are powered by easy-access 9V batteries, have an excellent brake, convenient carry handle, and on/off sensitivity switch. Rugged design and Solinst reel make these water level meters ideal for field use.





    102 Water Level Indicator

    TLC Meter Temperature, Level, Conductivity
    A Solinst TLC provides accurate, stable temperature and conductivity measurements displayed on a convenient rotating LCD display. Water level measurements are taken from permanently laser marked PVDF flat-tape, every 1/100ft (or mm) up to 1000ft. (300 m). The flat tape is flexible and hangs straight in application. The TLC Meter is ideal for temperature and conductivity profiling in wells or open water, and for a general indication of chemical contamination levels, salt water intrusion and salinity.
