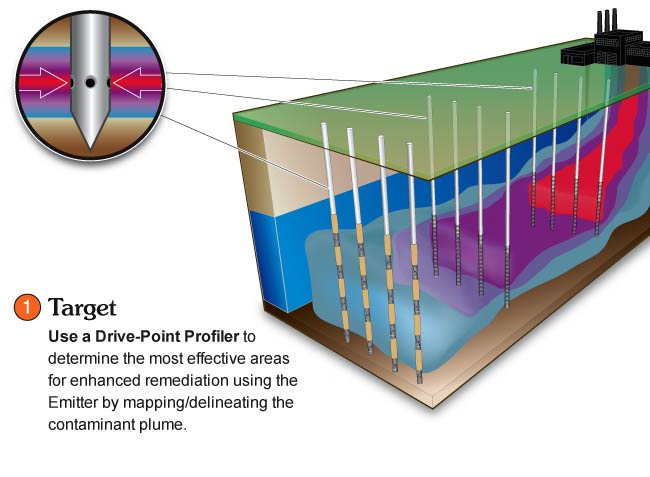

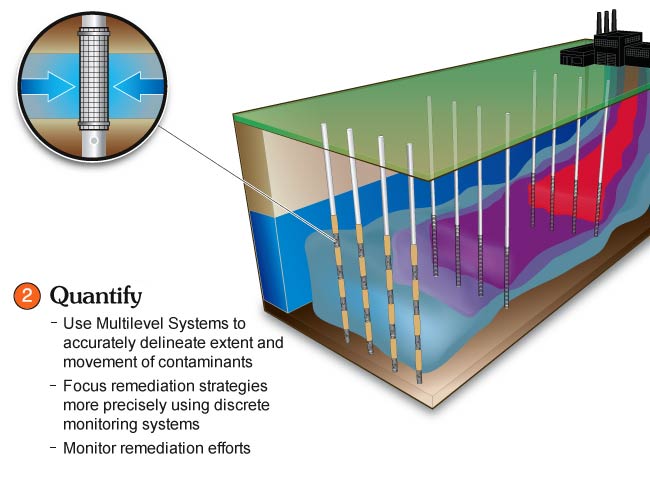

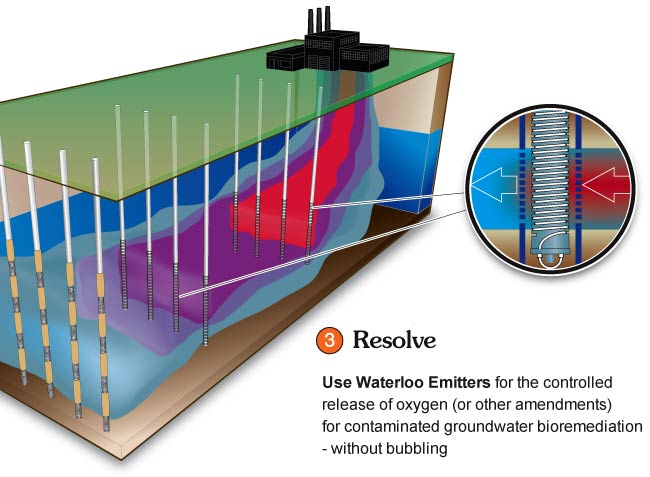

Schematic showing staged plume remediation using Waterloo Emitters,
monitored by a transect of CMT or Waterloo Multilevel Systems
placed down gradient.
(Click on 1, 2, 3 or A for a larger view)
Installation

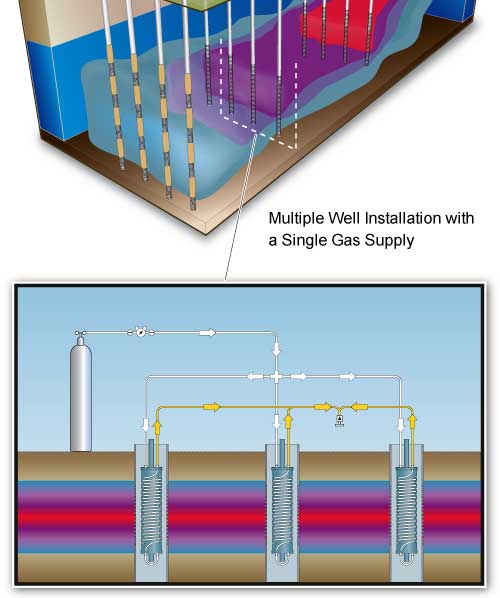

If an enhancement gas is to be used for remediation, a small to medium sized gas cylinder can be used. Emitter tubing is selected and pressure is set according to the amount of enhancement gas required. A single gas cylinder can be used to supply multiple Emitters connected in series. Replenishment of the gas inside the Emitter tubing can be accommodated by periodic purging (weekly/bi-weekly), or a needle bleed valve can be used at the end of the system to allow slow, constant replenishment to occur.
Applications
-
Oxygen release for aerobic bioremediation of BTEX and MTBE
-
Hydrogen release for anaerobic reductive dechlorination of solvents
-
Introduction of dissolved SF6, argon, etc. for use as tracers
-
Release of CO2 for pH adjustment
-
Light alkane release to promote co-metabolic biodegradation of MTBE
-
Plume migration barrier, primary remediation device, or polishing
Advantages
-
Low cost
-
Steady release for constant microbial activity
-
Easy installation and removal
-
Minimal maintenance and operating effort
-
No amendment loss due to ‘bubbling’
-
No hazardous substances introduced or produced
-
No slurry to mix, handle or inject
-
No electricity required
