Waterloo Emitter™

Engineered for the controlled diffusive release of:

Oxygen
for aerobic bioremediation

Hydrogen
for anaerobic bioremediation

CO₂
for pH adjustment

SF₆, He, Ar
for tracer tests

Simple, low cost & low maintenance

Controlled, uniform release

Patented technology developed at the University of Waterloo

Allows access for in situ sampling
and monitoring

Available for 2”, 4” and 6” boreholes

Enhance Bioremediation

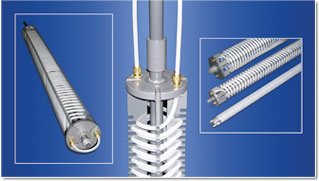

The Waterloo Emitter™ is designed to assist in-situ remedial biodegradation of MTBE, BTEX and other contaminants. It enables oxygen (or hydrogen for anaerobic remediation) to diffuse through silicone or LDPE tubing in a controlled uniform manner. The simple, low-cost, patented technology consists of a PVC frame wrapped with tubing that can be pressurized to obtain the desired flow of gas, depending on site-specific needs. Sized for 2", 4" & 6" (50, 100 and 150 mm) wells, the units can be stacked in a well and joined from one well to another, to allow the controlled uniform diffusion of gas into the plume.
