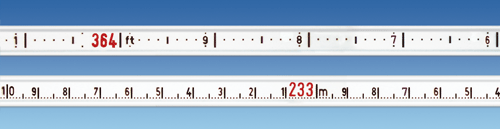

The high quality polyethylene tape reels smoothly, remains flexible and hangs straight in the well, irrespective of temperature. Permanent markings at each millimeter or 1/100 ft. allow accurate readings, traceable to national standards. Stranded stainless steel conductors resist corrosion, provide strength and are non-stretch. They make the tape very easy to repair and splice. The dog-bone design reduces adherence to wet surfaces. Markings are permanently impregnated onto one side of the tape in your choice of scale.
|

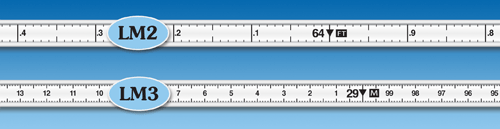

M2 |
Feet and tenths: with markings every 1/100 ft. |
|
M3 |
Meters and centimeters: with markings every mm. |
|
| N2 and N3 |
As above, but on the narrow 1/4” (6 mm)
tape for the 101 Mini Water Level Meter. |
|
The Model 101 Water Level Meter uses a choice of probe designs, attached to a permanently marked polyethylene tape, fitted on a well-balanced reel. It is powered by a standard 9 volt battery housed in an easy-access battery drawer. The conductors embedded within the tape, each have seven strands of stainless steel for strength and flexibility.
The probe incorporates an insulating gap between electrodes. When contact is made with water, the circuit is completed, activating a loud buzzer and a light. The water level is then determined by taking a reading directly from the tape at the top of the well casing or borehole.
|
|
|
|
|
|
