P7 Probe

The P7 Probe is submersible up to 1000 ft. (300 m), ideal for measuring total well depth. The sensor at the tip of the probe provides consistent measurements with almost zero displacement. The tape seal plug design allows the probe to be quickly and easily replaced, if required.

Size: 5/8" dia., 5.38" long (16 mm x 137 mm)
Weight: ~4.5 ounces (128 g)



P2 Probe

The P2 Probe is shielded in design to reduce or eliminate false readings in cascading water. The probe consists of a stainless steel body with a neoprene heat shrink seal. It is not suitable for submergence to any significant depth. Its simple design makes it easy to repair.

Size: 0.55" dia., 7.5" long (14 mm x 190 mm)
Weight: ~7 ounces (200 g)

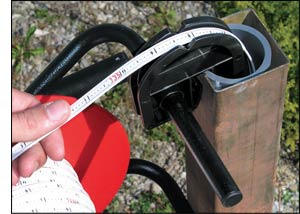

Tape Guide / Datum

A tape guide is provided with each Meter. It protects the tape from damage on rough edges of well casing and ensures easy, consistent measurements, regardless of who takes the readings. It can also provide reel support on the casing.
