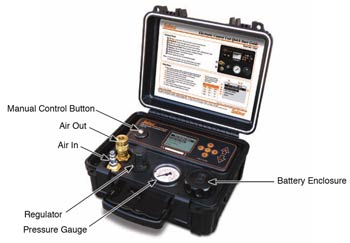

Model 464 Electronic Control Unit
(Click image to enlarge to full size)
Control Unit Specifications
Model 464
| |
125 psi |
250 psi |
Operating Temperature: |
-20˚C to 50˚C |
Weight: |
5 lbs (2.3 Kg) |
7.8 lbs (3.5 Kg) |
Drive/Vent Time Range: |
1 - 999 seconds |
Memory Capacity: |
3 preset flow rate settings
Save up to 99 custom flow rate settings |
Battery Life: |
40,000 drive/vent cycles
100 hrs @ 25˚C with 10 second cycles
(4 AA alkaline batteries) |
Max. Output Pressure: |
125 psi (861 KPa) |
250 psi (1724 KPa) |
Max. Output Pressure: |
150 psi (1034 KPa) |
300 psi (2068 KPa) |
Weight: |
5 lbs (2.3 Kg) |
Dimensions: |
9.1" x 10.2" x 4.9"
(23 cm x 26 cm x 12 cm) |
|
