Trimeter：水质探测器

特里米

型号 5001

Trimeter 是 Solinst Eureka 最紧凑的多探头探针。.Trimeter 采用了索林斯特尤里卡公司首屈一指的 Manta+ 多探头经现场验证的电子技术，仪器机身更小、更轻。Trimeter 为水质监测提供了功能强大且经济实惠的解决方案。

选择以下任何一种 Solinst Eureka 的水质传感器(不包括 ISE、PAR 和 CO2），并添加温度和/或深度（通风或不通风）传感器。注意温度包括在带 电导率, pH或 溶解氧传感器).

当您需要自供电探头进行自主浊度测量时，Trimeter 是您的最佳选择。浊度记录。例如，可选择带温度和深度的擦拭式浊度计，或仅选择浊度和温度
传感器。

三聚氰胺检测仪也非常适合用于染料痕量研究，配备有 罗丹明, 荧光素或 Solinst Eureka 提供的其他定制染料传感器。

将三用表与 Solinst Eureka 的 MantaLink™应用程序（iOS 或 Android™）或 Windows PC（不包括数据线或 USB 适配器）。

特里米特有哪些优势？

成本效益高：以较低的成本测量三个参数。
部署灵活：用于现场检查、记录或连接数据站/遥测设备。
浊度记录：传感器内置刮水器，非常适合自主浊度监测
易于使用：具有 LED 诊断状态指示灯。
实时数据：通过 RS-232 或可选的 SDI-12 或 MODBUS 连接到供电数据站，或通过 MantaLink 在智能设备上查看。
经久耐用：小巧、坚固、轻便的设计，配备坚固耐用的船用连接器。
多功能：与所有 Solinst Eureka 软件应用程序（Windows、iOS 和 Android）和通信电缆兼容。
可靠：3 年有限保修涵盖所有组件，包括传感器

获取报价

适合 Trimeter 的应用

在应用多样性方面，Trimeter 与旗舰产品 Manta+ 多探头系列一样用途广泛，包括

环境监测：长期监测：跟踪水质变化、评估径流影响、跟踪海水入侵等。
地表水和地下水采样：常规水质检查和含水层健康评估
。
工业排放监测：确保处理过程的合规性和有效性。
水产养殖：
水和废水处理：优化处理工艺，确保处理后的水质。
雨水径流监测：跟踪水质影响，衡量雨水管理措施的效果。
疏浚作业：监测浊度，确保合规并保护水生生境。
采矿作业：监测采矿活动对水质的影响。
研究与教育：开展水质研究项目。

获取报价

灵活的通信和配件

水下电缆和数据电缆连接到 Trimeter 上坚固的船用连接器。水下电缆的长度从 3 米到 200 米不等。可选配电池组，进行自供电记录。使用 mantaMobile™ 提供与移动设备上的 MantaLink 应用程序的蓝牙® 连接。还可选配软质和硬质便携箱、流量传感器和防污传感器防护罩。

Trimeter Specifications

Diameter (OD):

Without external battery pack:

1.95 inch (5 cm)

With external battery pack:

2.95 inch (7.5 cm)

Length:

Without battery pack:

14 inch (36 cm)

With internal battery pack:

24.5 inch (62 cm)

With external battery pack:

23 inch (58 cm)

Weight:

Without battery pack:

1.4 lbs (0.64 kg)

With internal battery pack (with batteries):

2.4 lbs (1.1 kg)

With external battery pack:

3.7 lbs (1.7 kg)

Battery pack options:

Internal:

Holds three 1.5 VDC D size replaceable alkaline batteries

External:

Attachable rechargeable Li-ion battery

Battery Life:

Logging time dependent on number of sensors, logging interval and temperature

Operating Temperature:

-5ºC to 50ºC

Maximum # Readings:

4 Mbytes for logged data, greater than 1,000,000 readings

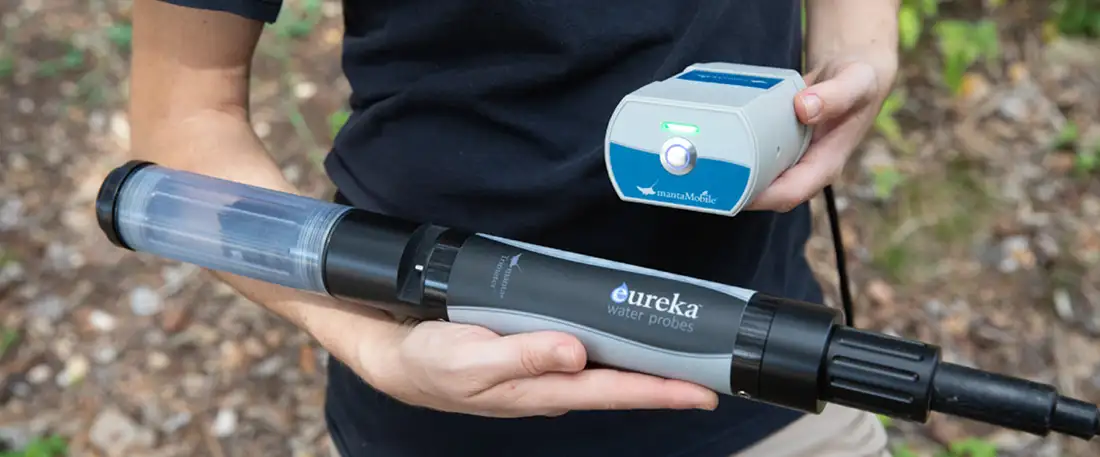

带 mantamobile 无线蓝牙装置的 Solinst eureka trimeter 水质探头

获取报价

Trimeter Sensor Specifications

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

temperature

-5 to 50ºC

0.01

±0.1

Calibration not required

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

pH/ORP

pH

0 to 14 units

0.01

±0.1 within 10ºC of calibration; or 0.2 otherwise

Refillable reference electrode; corrected for temperature; typical sensor life greater than 6 years; optional ORP sensor is combined with pH sensor

pH/ORP

ORP

-999 to 999 mV

0.1

±20 mV

Refillable reference electrode; corrected for temperature; typical sensor life greater than 6 years; optional ORP sensor is combined with pH sensor

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

conductivity

specific conductance μS/cm

0 to 5000 μS/cm

0.1

±0.5% of reading or ±1 w.i.g.

Corrected for temperature; four easy-to-clean graphite electrodes; optional sensor provides ±0.5% of reading accuracy to 100 mS/cm.

conductivity

specific conductance, mS/cm

0 to 100 mS/cm

0.001

±1% of reading ±0.001

Corrected for temperature; four easy-to-clean graphite electrodes; optional sensor provides ±0.5% of reading accuracy to 100 mS/cm.

conductivity

specific conductance, mS/cm

100 to 275 mS/cm

0.001

±2% of reading

Corrected for temperature; four easy-to-clean graphite electrodes; optional sensor provides ±0.5% of reading accuracy to 100 mS/cm.

conductivity

salinity

0 to 70 PSU

0.01

±2% of reading

Corrected for temperature; four easy-to-clean graphite electrodes; optional sensor provides ±0.5% of reading accuracy to 100 mS/cm.

conductivity

total dissolved solids (TDS)

0 to 65 g/l

0.1

±5% of reading

Calculated from conductivity and temperature, PSU is equivalent to ppt

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

dissolved oxygen (optical sensor)

concentration

0 to 20 mg/l

0.01

±0.1

Compensated for temperature and salinity; EPA approved - lifetime - luminescence method; typical sensor cap life greater than 6 years

dissolved oxygen (optical sensor)

concentration

20 to 30 mg/l

0.01

±0.15

Compensated for temperature and salinity; EPA approved - lifetime - luminescence method; typical sensor cap life greater than 6 years

dissolved oxygen (optical sensor)

concentration

30 to 50 mg/l

0.01

±5% of reading

Compensated for temperature and salinity; EPA approved - lifetime - luminescence method; typical sensor cap life greater than 6 years

dissolved oxygen (optical sensor)

% saturation

0 to 500% saturation

0.1

corresponds with the accuracy of the concentration reading

Compensated for temperature and salinity; EPA approved - lifetime - luminescence method; typical sensor cap life greater than 6 years

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

turbidity

0 to 1000 FNU

0.01

±0.3 FNU or ±2% of reading w.i.g.

Filtered for non-turbidity spikes; includes wiper to clean the optics; FNU and NTU are interchangeable

turbidity

1000 to 4000 FNU

0.01

±4% of reading

Filtered for non-turbidity spikes; includes wiper to clean the optics; FNU and NTU are interchangeable

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

pressure

depth

0 to 25 m

0.01

±0.05

Compensated for temperature and salinity

pressure

depth

0 to 200 m

0.01

±0.4

Compensated for temperature and salinity

pressure

vented depth

0 to 10 m

0.001

±0.003

Compensated for temperature, salinity, and barometric pressure

pressure

barometric pressure

400 to 900 mm Hg

0.1

±1.5

Included with depth sensor

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

total dissolved gas (TDG)

400 to 1,400 mm Hg

0.1

±1

Compensated for temperature; maximum depth 15 m

Sensor

Parameter

Range & Units

Resolution

Accuracy

Comments

fluorometers

chlorophyll a - blue

0 to 100 μg/l

0.01

linearity of 0.99 R²
