水质探头快速参考指南

请将本快速参考指南作为《水质探头用户指南》的补充。

加载 Manta 控制电脑软件（适用于 Windows）

从 Solinst Eureka USB 闪存盘或https://downloads.solinst.com/下载（链接也可在 Solinst Eureka 网页的 “支持 “下找到）。USB 闪存盘还包括水质探头用户指南

连接水质探头

将数据线连接到 USB 至 RS-232 适配器
将数据线的另一端连接到探头的船用连接器上
将 USB 适配器电缆连接到电脑
点击 Manta 控制软件启动
主屏幕将打开，滚动显示实时数据

注意：在连接探头之前不要启动控制软件

LED 灯 （位于水质探头内部的电路板上 – 通过标签开口查看）

绿色：绿灯：当通过电缆接收到足够的工作电压时，每秒闪烁一次
注：如果由内部或外部电池组供电，则不会闪烁
红色：启用记录功能时，开机闪烁 5 次
琥珀色：接收 RS-232 通信时闪烁

获取报价

使用 Manta 控制软件

In Manta Control Software, click on the PC tab ON Main Menu

PC

Function

Set scroll interval...

Sets the time interval that live data scrolls on the screen

Set snapshot location...

Create a file on your PC where your site data will be stored

Automatic snapshot...

Turn “ON” to capture continuous data in snapshot file location at set scroll interval

Graphing...

Generate on-screen graphs

Com ports...

Selects which COM port is connected to the Probe

In Manta Control Software, click on the Manta tab ON Main Menu

Manta

Function

Manage Manta files...

Access and manage log files stored in the Probe’s memory

Logging setup...

Set logging frequency and name your log file

Call log...

Automatic stored log of all the calibrations in Probe’s memory

Sensors and parameters list...

Selects and enables parameters

Calibrate...

Calibrate sensors - See reverse side for calibration table

Manta version...

Displays firmware version and Probe serial number

Create a custom parameter...

Setup custom sensor parameter

Delete a custom parameter...

Delete custom parameters

请注意：

对于 Trimeter 探头，USB 至 RS-232 适配器和数据线需单独购买。

面向 mantaMobile™ 用户

加载 MantaLink™ 移动应用程序

请参阅您的 mantaMobileBluetooth® 设备随附的说明。使用 QR 码下载应用程序。

Solinst eureka mantamobile appstore qr 代码

SOLINST EUREKA MANTAMBILE GOOGLE PLAY QR 码

Manta Control Hot Buttons

What the Button Does

Manta Logging is ON/Off

Turns On/Off internal Logging

Capture One Line of Data to

Captures data snapshot to Active Snapshot

PC without Annotation

File location

Capture One Line of Data to

Captures data snapshot with notes to

PC with Annotation

Active Snapshot file location

Wipe One Cycle Now

Activates one-time wipe if wiper is present

Clear Screen

Clears data displayed on PC

Restart

Restarts program

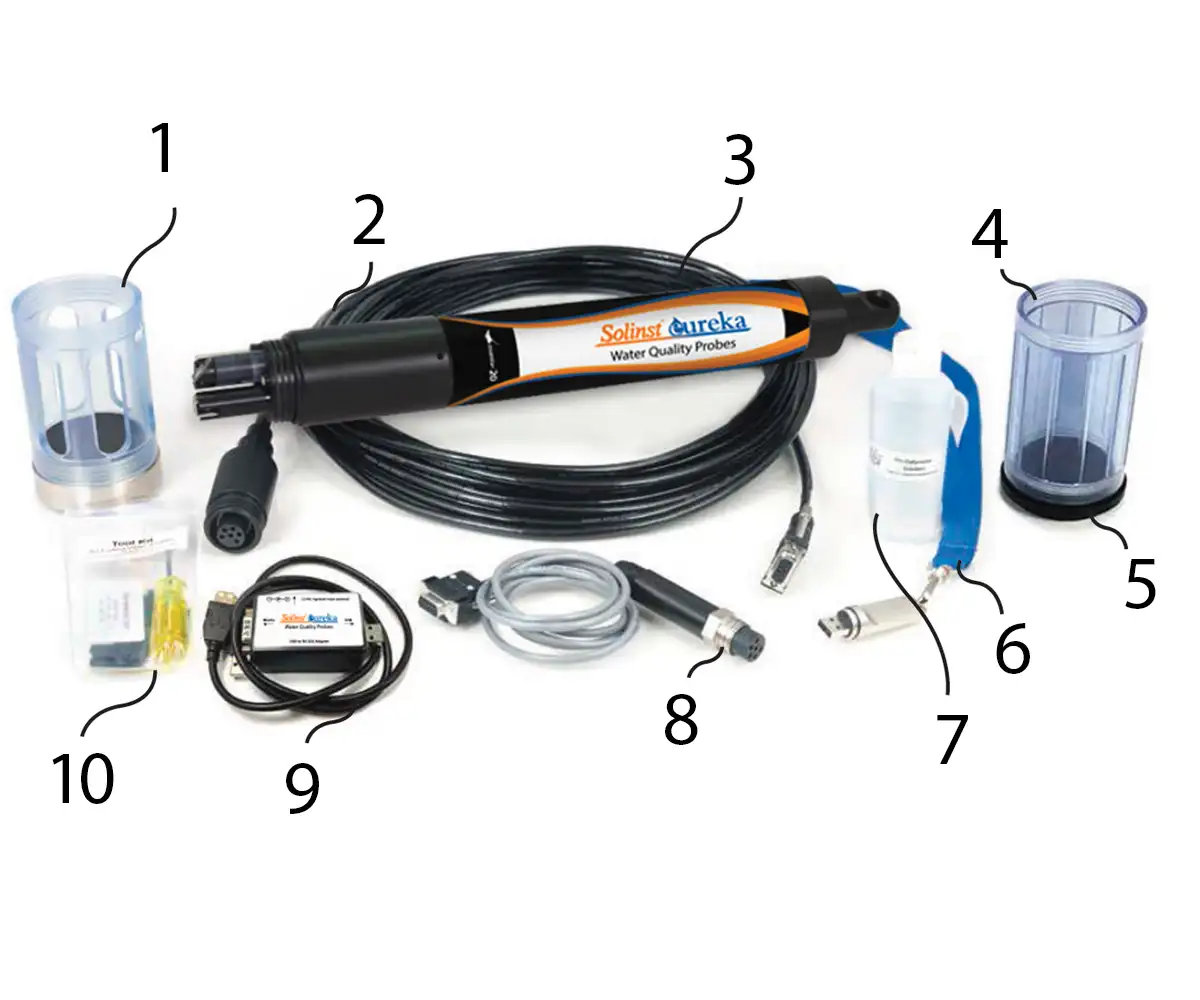

加权传感器防护罩
水质探测器
水下电缆（需单独购买）
校准/储存杯
活动盖
USB 闪存盘
用于补充 pH 值基准的 pH 电解质溶液
数据线
USB 转 RS-232 适配器
工具包

校准表

Sensor

Standard Method of Calibration

Calibration Standards

Comments

Temperature

never requires calibrating

N/A

pH

2 or 3 points

pH 4, pH 7, pH 10

pH7, pH 10 most common

ORP

1 point

ORP Standard 200 mV

N/A

Conductivity

1 point

CD Standard, 0.5 Molar, 58670 Micro S

brackish/saltwater

Conductivity

1 point

CD Standard, 0.1 Molar, 12856 Micro S

borderline brackish typical

Conductivity

1 point

CD Standard, 0.01 Molar, 1412 Micro S

freshwater very pure

Conductivity

1 point

CD Standard, 0.001 Molar,147 Micro S

fresh/glacial

Reference Electrode

calibration not required

N/A

replace pH electrolyte solution at routine calibration

Depth

adjust for barometric pressure

N/A

recalibrate at deployment site for best accuracy

Turbidity

2 points

0 NTU, 10 NTU, 100 NTU, 400 NTU, 600 and 1000 NTU available by special order

calibrate bracketing expected value

HDO (Optical DO)

calibrate at 100% saturated water

DI water -shake vigorously to oxygenate

set barometric pressure before calibrating, recalibrate at deployment site for best accuracy

Chlorophyll

2 points

liquid dye or Chlorophyll standard

calibrate to zero and calibration standard

Rhodamine

2 points

rhodamine dye standard

calibrate to zero and calibration standard

Blue Green Algae

2 points

lab sample or dye standard

calibrate to zero and calibration standard

Ammonium (NH4+)

2 points

Low 4.63 mg/l; High 46.3 mg/l

calibrate to Low and High Values

Nitrate (NO3+)

2 points

Low 4.62 mg/l; High 46.2 mg/l

calibrate to Low and High Values

Chloride (CL-)

2 points

Conductivity Standard 147 Micro S

enter 34.3 during calibration for low

Chloride (CL-)

2 points

Conductivity Standard 1412 Micro S

enter 319.3 mg/L for high
