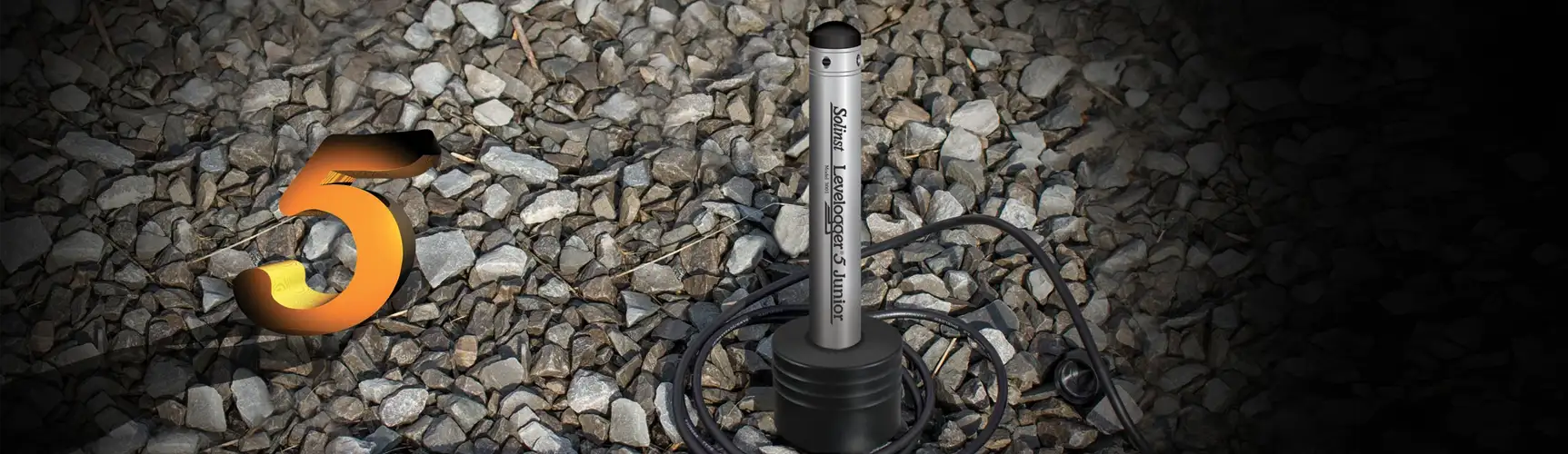

Model 3001 Levelogger 6 Junior
Reliable Water Level Data. Engineered for Smart Budgets.
Get Solinst precision and Hastelloy® sensor durability at a lower cost per monitoring point. The Model 3001 Levelogger 6 Junior delivers 0.1% FS accuracy, 5-year battery life, and 2X communication speed across essential groundwater and surface water monitoring applications.
- High-Value, Cost-Effective Performance:
Scales down the expense—not the reliability. High-accuracy water level and temperature logging (0.1% FS) with lifetime factory calibration makes large-scale multi-site deployments more affordable. - Proven Hastelloy® Sensor Resilience:
Equipped with the same durable Hastelloy® piezoresistive pressure sensor found in our flagship Levelogger 6, offering superior harsh-environment resistance and2 times over-pressure protection. - 2X Fast Data Transfers & USB-C:
Download data faster than ever before. Full support for the Mk3 USB-C PC Interface Cable doubles communication speeds to 19.2k Baud for rapid field data retrieval. - Dedicated Backup Memory & 5-Year Battery:
Primary memory stores up to 75,000 data sets, reinforced by a dedicated backup memory holding the latest 500 readings to safeguard critical water level records.
Streamlined Operation for Core Monitoring Programmes
The Levelogger 6 Junior simplifies field deployments without compromising on essential logging features. Ideal for project sites that require reliable long-term data collection without complex schedule scripting.
- Lifetime Factory Calibration: Pre-calibrated across its entire operating range so you can deploy immediately out of the box.
- Instant In-Field Diagnostics: Connect via Levelogger Software or smart devices for instant status checks, remaining battery life, and real-time data viewing.
- Effortless Barometric Compensation: Easily compensate multiple Levelogger 6 Junior files simultaneously using a single local Barologger 6 data file in the Levelogger Data Wizard.
- Flexible Sampling Rates: Programme linear logging intervals from 0.5 seconds up to 99 hours with future start options.
Typical Field Applications:
- Groundwater & Well Monitoring: Routine head level measurement and baseline monitoring.
- Aquifer Testing: Short-term pumping and slug tests.
- Surface Water & Lakes: River gauging, stream response, and wetland management.
- Stormwater & Drainage: Runoff tracking and detention basin monitoring.
- Industrial & Municipal Tanks: Fluid storage and tank level verification.
High Accuracy; Long Battery Life
The Levelogger 5 features a Hastelloy pressure sensor with 0.05% FS accuracy, 10-year battery, schedule sampling and memory for up to 150,000 sets of readings. A PFAS-free PTFE coating protects (inside and out) against corrosion, ideal for saltwater intrusion investigations.
- 4 mm (0.157″) or 10 mm (3/8″) diameter stainless steel probes
- Segmented weights for flexibility
- LED light and loud buzzer indicates water level
- Adjust sensitivity to suit your application
- Conductivity, water level and temperature data logging
- Full range 0-80,000 S/cm
- Ideal for salinity and saltwater intrusion studies, tracer tests, agricultural and stormwater run-off monitoring
- Creates a wireless connection between your Levelogger and smart device running the Solinst Levelogger App
- Program your Leveloggers to record, or view and save real-time readings
- Download and view data collected by your Levelogger and email it from your smart device
Related Blog Posts
The Importance of Measuring Drawdown
How Using a Levelogger and 101D Water Level Drawdown Meter Together Provides Essential Data What is Drawdown? Drawdown is a change in groundwater level due to an applied stress, caused by events such as: Pumping from a well Pumping from a neighbouring well Intensive water taking from local area Seasonal declines as recharge rates lower How is Drawdown Measured?
Related Products
Plug and Play Telemetry
Already own Leveloggers? Quickly and easily upgrade your monitoring wells with LevelSender Telemetry. The 4G LevelSender telemetry system features an optional Solinst SIM card. It is set up for you in advance—with a low-cost plan managed by Solinst! An internal barometer provides automatically compensated water level readings; set high/low level alarms.
Discover Anywhere Monitoring
SolSat is a telemetry system that leverages Iridium satellite technology to provide global connectivity for Solinst 5 Series dataloggers. It uses low-cost TextAnywhere global satellite messaging to send remote data to a secure web portal. It features a robust weatherproof enclosure for installation almost anywhere. Features built-in Wi-Fi setup app, solar panel, and barometer.
Solinst Readout Unit (SRU)
The Solinst Readout Unit (SRU) is a rugged, handheld device designed to connect to a deployed Solinst data logger and display instant water level readings – with the option of automatic barometric compensation. Real-time logging and downloaded data can be saved and transferred to a PC. Quickly check the data logger's status.
Versatile Submersible Water Level Transmitter
The 301 Water Level Temperature Sensor provides the option of highly accurate water level transmission using multiple protocols – MODBUS, SDI-12 and 4-20mA – for a wide variety of applications. This compact, all-in-one submersible hydrostatic level transmitter provides continuous, stable water level and temperature readings, with options for absolute and gauged pressure sensors.
415 12V Submersible Pump
The Solinst 12V Submersible Pump provides an efficient means of purging and obtaining groundwater samples from 2" OD monitoring wells. The compact pump can sample from depths of 36.5 m (120 ft) below ground surface, and is easy to adjust the flow rates up to 13.5 L/min (3.6 US gpm) in shallower applications.
