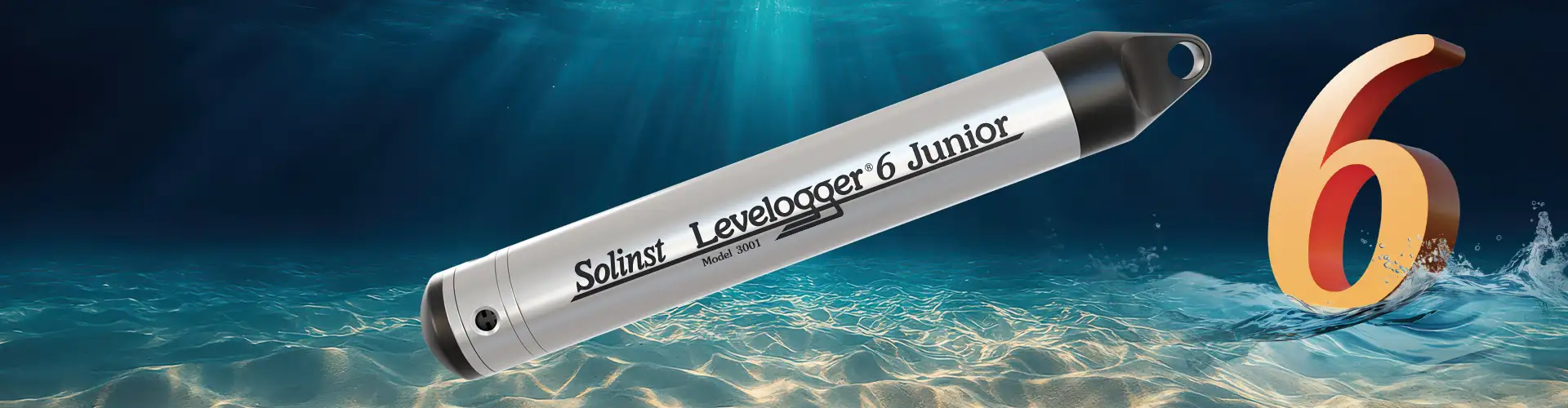

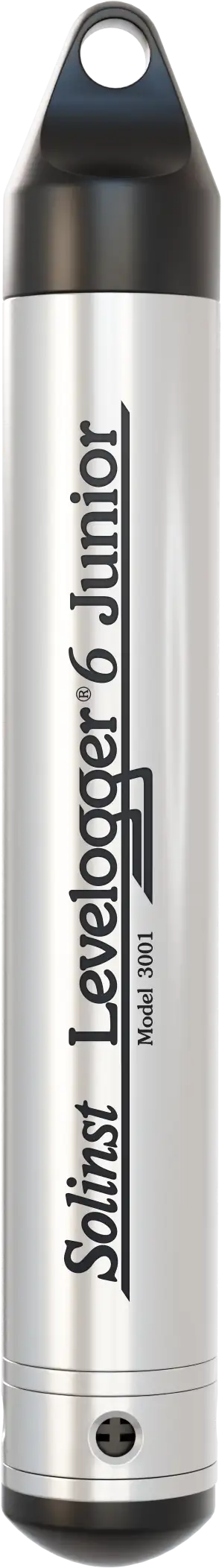

Model 3001 Levelogger 6 Junior
Reliable Water Level Data. Engineered for Smart Budgets.
Get Solinst precision and Hastelloy® sensor durability at a lower cost per monitoring point. The Model 3001 Levelogger 6 Junior delivers 0.1% FS accuracy, 5-year battery life, and 2X communication speed across essential groundwater and surface water monitoring applications.
- High-Value, Cost-Effective Performance:
Scales down the expense—not the reliability. High-accuracy water level and temperature logging (0.1% FS) with lifetime factory calibration makes large-scale multi-site deployments more affordable. - Proven Hastelloy® Sensor Resilience:
Equipped with the same durable Hastelloy® piezoresistive pressure sensor found in our flagship Levelogger 6, offering superior harsh-environment resistance and2 times over-pressure protection. - 2X Fast Data Transfers & USB-C:
Download data faster than ever before. Full support for the Mk3 USB-C PC Interface Cable doubles communication speeds to 19.2k Baud for rapid field data retrieval. - Dedicated Backup Memory & 5-Year Battery:
Primary memory stores up to 75,000 data sets, reinforced by a dedicated backup memory holding the latest 500 readings to safeguard critical water level records.
Streamlined Operation for Core Monitoring Programs
The Levelogger 6 Junior simplifies field deployments without compromising on essential logging features. Ideal for project sites that require reliable long-term data collection without complex schedule scripting.
- Lifetime Factory Calibration: Pre-calibrated across its entire operating range so you can deploy immediately out of the box.
- Instant In-Field Diagnostics: Connect via Levelogger Software or smart devices for instant status checks, remaining battery life, and real-time data viewing.
- Effortless Barometric Compensation: Easily compensate multiple Levelogger 6 Junior files simultaneously using a single local Barologger 6 data file in the Levelogger Data Wizard.
- Flexible Sampling Rates: Program linear logging intervals from 0.5 seconds up to 99 hours with future start options.
Typical Field Applications:
- Groundwater & Well Monitoring: Routine head level measurement and baseline monitoring.
- Aquifer Testing: Short-term pumping and slug tests.
- Surface Water & Lakes: River gauging, stream response, and wetland management.
- Stormwater & Drainage: Runoff tracking and detention basin monitoring.
- Industrial & Municipal Tanks: Fluid storage and tank level verification.
High Accuracy; Long Battery Life
The Levelogger 5 features a Hastelloy pressure sensor with 0.05% FS accuracy, 10-year battery, schedule sampling and memory for up to 150,000 sets of readings. A PFAS-free PTFE coating protects (inside and out) against corrosion, ideal for saltwater intrusion investigations.
- 4 mm (0.157″) or 10 mm (3/8″) diameter stainless steel probes
- Segmented weights for flexibility
- LED Light and loud buzzer indicates water level
- Adjust sensitivity to suit your application
- Conductivity, water level and temperature datalogging
- Full range 0-80,000 S/cm
- Ideal for salinity and saltwater intrusion studies, tracer tests, agricultural and stormwater run-off monitoring
- Creates a wireless connection between your Levelogger and smart device running the Solinst Levelogger App
- Program your Leveloggers to record, or view and save real-time readeings
- Download and view data collected by your Levelogger and e-mail it from your smart device
