The Evolution of Trusted Monitoring

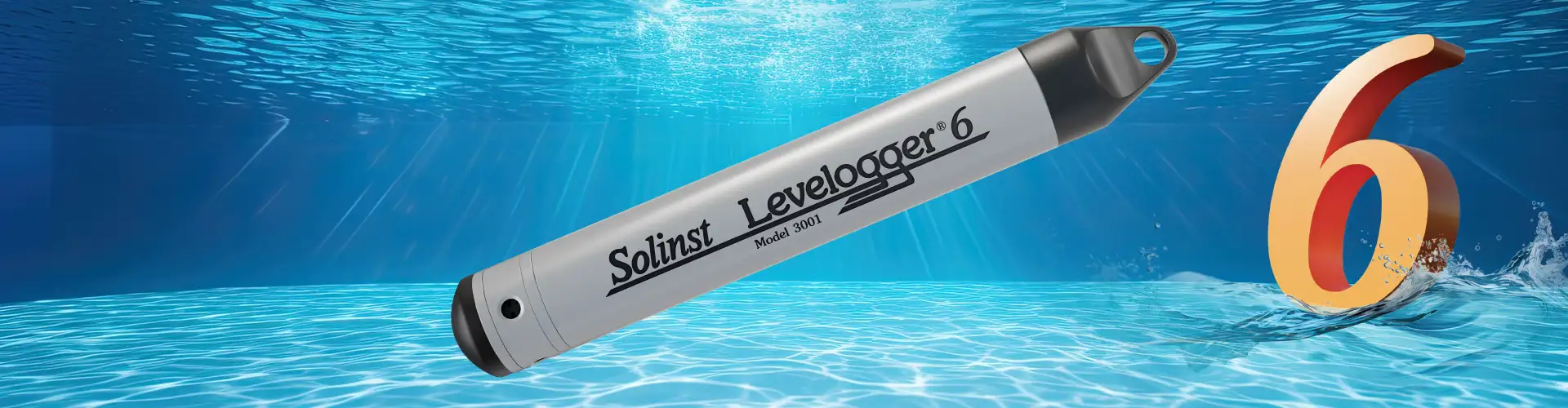

Introducing the New Levelogger 6!
Proven Reliability – Upgraded
The release of the NEW Levelogger 6 engineered from the ground up with enhanced reliability, advanced on-board capabilities, high-speed communications and data management tools designed for modern monitoring programmes.
Our customers demand accurate, reliable, high quality water level and temperature data. The Levelogger 6 delivers exactly that.
Workmanship You Can Trust Support You Can Count On
We value our relationship with customers as much as the data they collect. Rely on our experienced team for expert advice and solutions throughout your project.

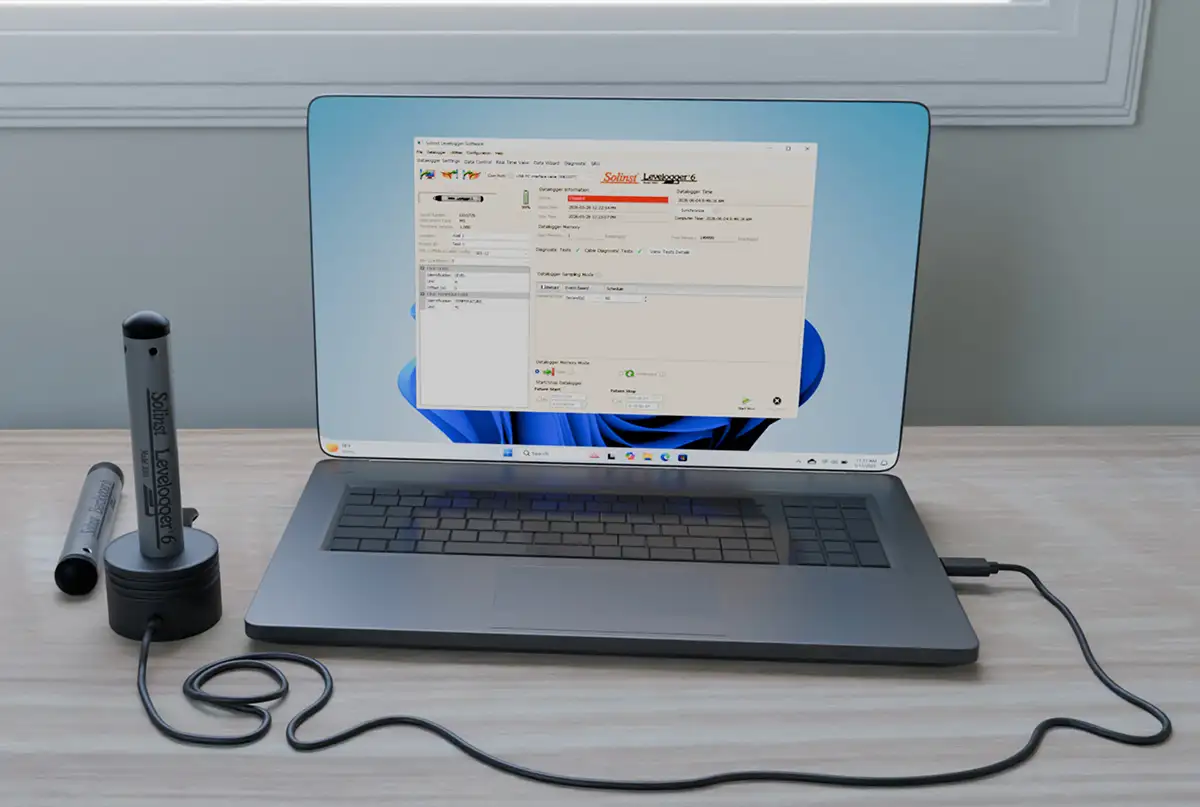

- 2X Download Speed & Smart USB-C Connectivity
- Transfer large datasets faster than ever. Paired with the new Mk3 USB-C PC Interface Cable, the Levelogger 6 doubles communication speed to 19.2k Baud and features real-time LED diagnostic feedback for Direct Read Cables.
- Upgraded Electronics & Precision
-
Featuring enhanced temperature stability and sensitivity across extreme ranges, the Hastelloy® piezoresistive sensor provides exceptional 0.05% FS accuracy with
2 times over-pressure protection.
-
- Zero-Data-Loss Protection
-
Primary memory stores up to 150,000 data sets. A dedicated, non-volatile backup memory continuously holds the latest 20,000 readings, ensuring your critical monitoring record is never lost.
-
- Extreme Environmental Durability
-
Encased in a 22 mm x 160 mm (7/8″ x 6.3″) stainless steel body with double o-ring seals and a baked-on, PFAS-free polymerisation coating inside and out for ultimate corrosion resistance.
-
What is a Water Level Data Logger?
A water level data logger is an instrument that automatically and continuously records fluctuations in water level. Water level data logs are stored in the data logger’s memory and can be downloaded using software, or can be collected by other means such as a smart device app, telemetry, or data acquisition system.
Many water level data loggers use a pressure sensor to measure water pressure above the water level data logger zero measurement point. Water pressure readings can then be converted to water level equivalent measurements. Solinst offers both absolute and vented (gauged) pressure sensor water level data loggers. An absolute water level data logger measures both water and atmospheric pressure; therefore water level data needs to be barometrically compensated. A vented water level data logger is vented to the atmosphere and only measures water pressure.
Typically, water level data loggers are programmed, stopped, started and set to record at a specific interval using a software program. Solinst water level data loggers can be set to record water levels as often as 1/8 of a second. A water level data logger is an alternative to using a water level meter, which requires personnel to manually measure and record water levels. As such, water level data loggers are ideal for long-term, uninterrupted water level monitoring and for short-term hydrogeological studies that require a high frequency of water level recordings.
Solinst water level data loggers also record water temperature; in addition, the Levelogger LTC records conductivity. Solinst water level data loggers are compact instruments and combine the pressure sensor, temperature sensor, conductivity sensor, memory, and long-lasting battery in one durable housing.
All-in-one water level data loggers make deployment easy. Solinst provides the option of deploying via simple wireline/rope or using direct read cables to allow communication while the data logger is installed and logging (vented water level loggers are deployed using vented communication cables). Water level data loggers can be used to measure groundwater levels, as well as surface water levels in rivers, streams, lakes, oceans, etc.
- Conductivity, water level and temperature data logging
- Full range 0-80,000 S/cm
- Ideal for salinity and saltwater intrusion studies, tracer tests, agricultural and stormwater run-off monitoring
- Creates a wireless connection between your Levelogger and smart device running the Solinst Levelogger App
- Program your Leveloggers to record, or view and save real-time readings
- Download and view data collected by your Levelogger and email it from your smart device
