Ensuring Proper Use And Levelogger Maintenance

Download Technical Bulletin

Knowing What to Expect

levelogger edge pressure transducer

As with any groundwater or surface water monitoring project, you should determine the best instruments to use, and how to maintain those instruments, based on the monitoring environment specific to your application.

When using Leveloggers, this means selecting the appropriate pressure range, ensuring the monitoring temperatures are within the instruments specifications, making sure the wetted materials are compatible with your site’s chemistry, and determining the proper deployment method.

A Levelogger maintenance schedule and precautionary measures should be determined early on, especially if you suspect your monitoring environment to be harsh on the instrument sensors.

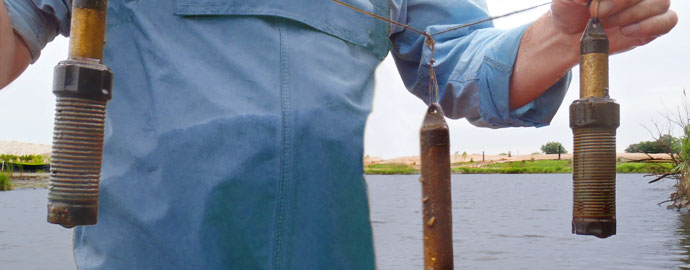

Blog-LoggerMaintenance

Selecting the Proper Levelogger

Leveloggers are available in a variety of pressure ranges, from F15/M5 to F600/M200, which can withstand submergence from 15 feet (5 meters) to 600 feet (200 meters), respectively. The Levelogger Edge can withstand 2 times overpressure, but outside the stated pressure range, accuracy is not guaranteed. Using outside the overpressure range can damage the sensor.

A temperature detector is used to accurately compensate for temperature changes, within the range of 0 to +50ºC for the Levelogger Edge. The Levelogger will record temperature in its thermal range of -20 to +80ºC, but outside the compensation range, readings will be less accurate. Using beyond the thermal range can damage the unit.

Levelogger data sheets provide a list of wetted materials to help check for chemical compatibility with the monitored water. Before deploying your Levelogger, you can also check the chemical compatibility of your instrument’s wetted materials, by obtaining a sample of the water you will be monitoring in, and measuring the chemicals of concern for your site.

3001LeveloggerV4

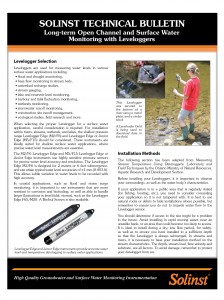

Long-Term Open Channel and Surface Water Monitoring with Leveloggers

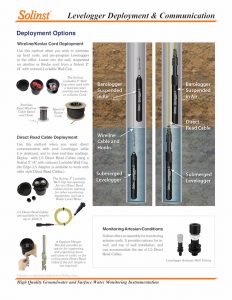

Solinst has documents to help determine the best deployment method for your Levelogger, including the Levelogger User Guide and Technical Bulletins.



Placing your Levelogger in that water for a closely monitored test period, although actual expected pressure and temperature conditions may not be emulated, will give you a good idea of how your Levelogger will react and perform in the chemical environment. This type of test can be done with any instrument, including pumps, water level meters, etc.

Scheduling Levelogger Maintenance

If you are not sure how your Leveloggers are going to perform in, and/or react to your monitoring environment, it is recommended to schedule staged site inspections to physically check your units and their function periodically during the monitoring term.

If you do not check your site regularly, you will not know how the monitoring environment is affecting your instruments.

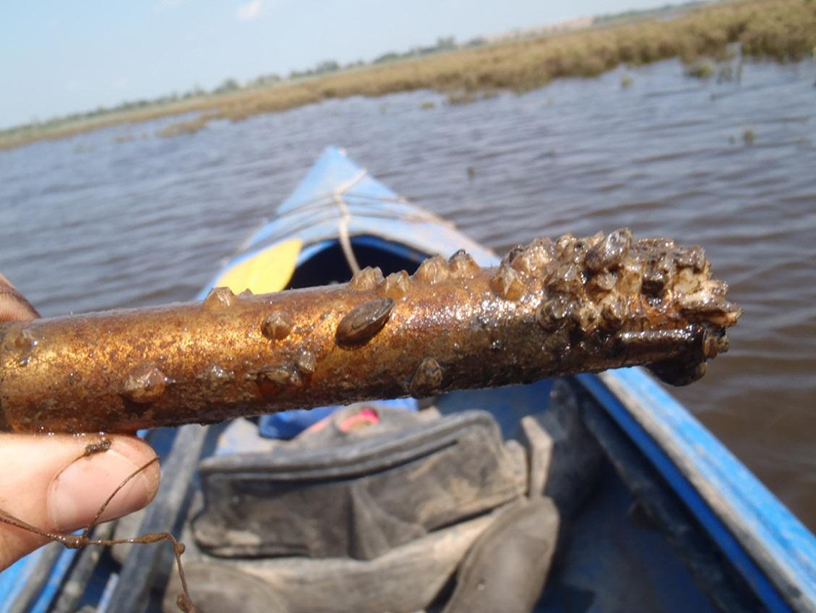

The photos below show different types of biofouling that can occur. Biofouling, sediment accumulation, or corrosion on a pressure sensor or conductivity cell can compromise the accuracy of their measurements.

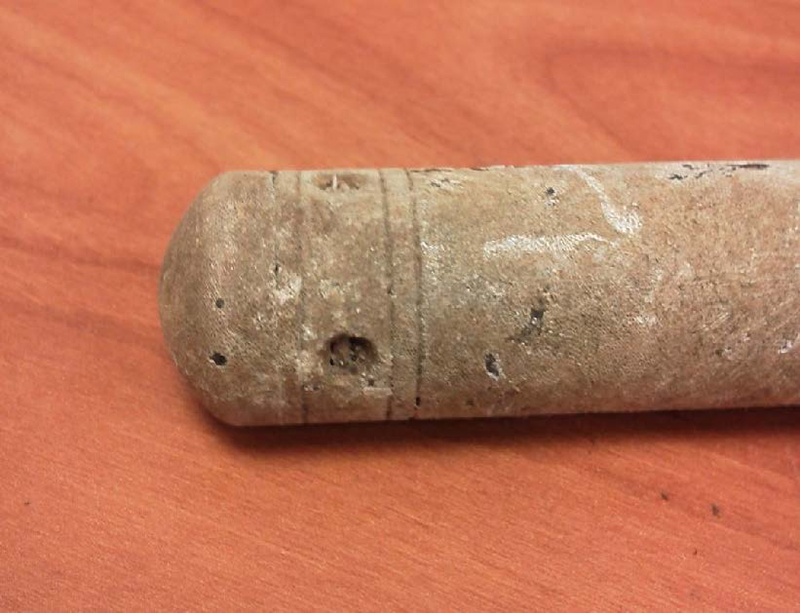

Result of Lack of Levelogger Maintenance

Levelogger with Biofouling

Photo Credit: Tom Shinskey, The Louis Berger Group

It is also recommended to take manual water level measurements each time you inspect your Levelogger. These manual water level measurements can be used to compare to Levelogger readings to ensure the Levelogger is performing as it should. If your readings appear to be inaccurate, it may be a sign that your Levelogger needs to be cleaned.

Solinst offers the Model 101 Water Level Meter, Model 101D Water Level DrawDown Meter and the Model 102 Water Level Indicator for accurate manual water level measurements.

All sensors experience some long-term drift from their original calibrated state, but not routinely performing maintenance checks and cleaning, can lead to accelerated sensor degradation. (Check out our Technical Bulletin explaing Pressure Sensor Drift.)

Determining how frequent your site visits should be, is again based on your monitoring environment — specifically water quality. In good quality freshwater, such as a municipal production well, inspecting a Levelogger and taking manual measurements may just be done seasonally; actually cleaning the Levelogger may only be needed annually. While, in harsher environments, such as at contaminated sites, inspections and cleaning should be more frequent.

Your ongoing maintenance schedule will be based on your own experience and knowledge of the monitoring site, and based on the results of your staged site inspections.

Preventative Levelogger Maintenance

If you are familiar with the conditions of your monitoring site, and know you are going to require extra corrosion-resistance, biofouling protection, or protection from ice accumulation, there are precautionary steps that can be taken.

Although the Levelogger Edge has a corrosion-resistant titanium based PVD coating and a Hastelloy pressure sensor diaphragm, in extremely corrosive environments, you can further protect the Levelogger using a balloon filled with deionized water or tap water. As pressure changes, the fluid encasing the loggers will transmit the pressure differential to the logger’s pressure transducer, without exposing it to corrosive conditions.

Solinst offers a Biofoul Screen that can be used to protect the Levelogger against biofouling. The Delrin copper-coiled screen naturally reduces biofouling. The Biofoul Screen simply slips onto the sensor end of the Levelogger where it is held in place with its compression fitting. It allows water to freely enter the pressure transducer inlets, and/or conductivity cell.

Below is a photo from a case study where the Biofoul Screen was successful in protecting the Levelogger – check out that case study here.

Levelogger with Biofoul Screen

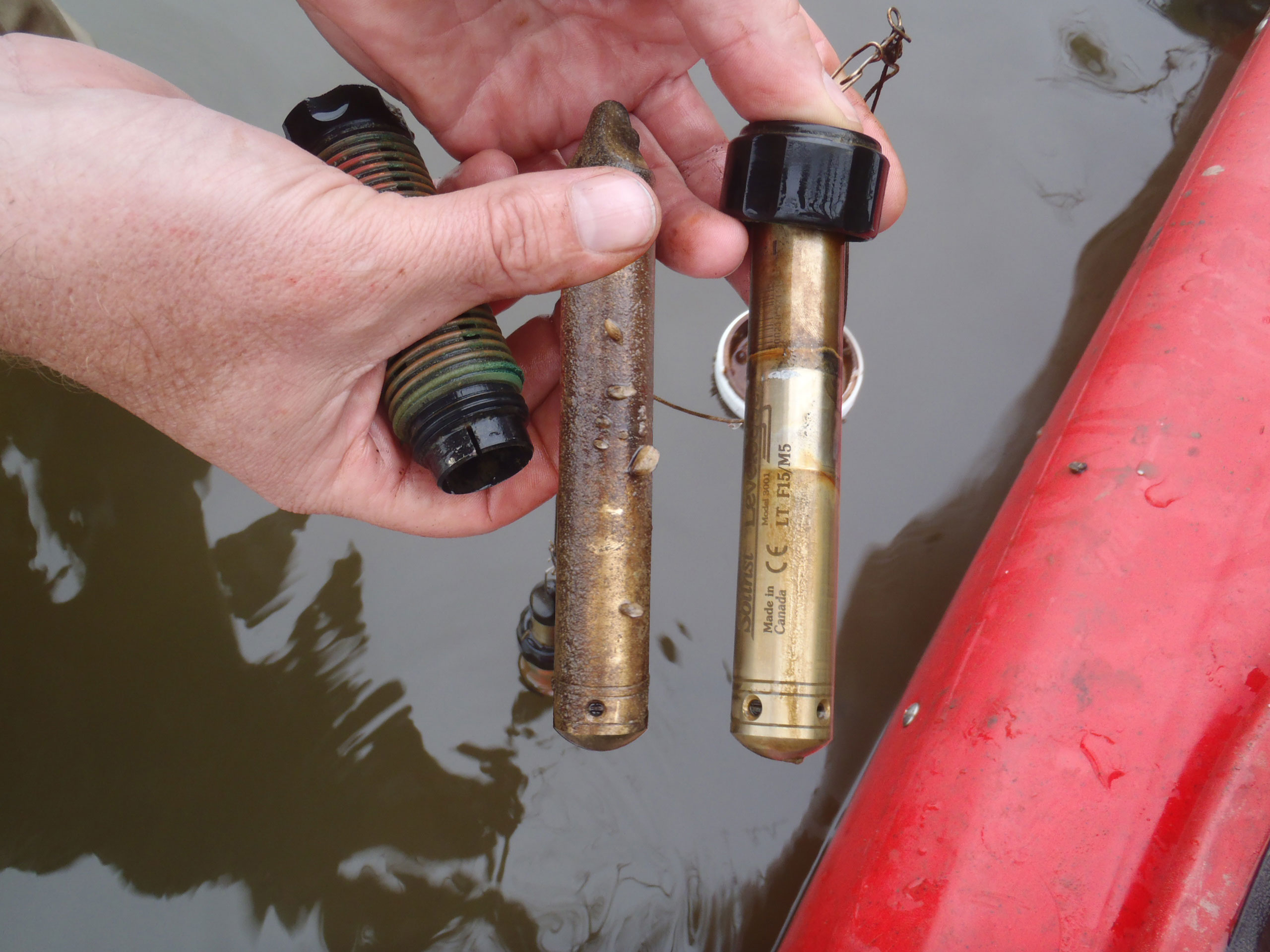

The Levelogger on the right was protected using a Biofoul Screen, while the Levelogger on the left was deployed unprotected and shows signs of biofouling on the sensor end.

To avoid icing, the easiest method is to lower the Levelogger to a point in the water column below the frost line or ice formation depth. In shallow streams, wetlands or ponds where icing/freezing may penetrate to the bottom, install the Levelogger in a vented stilling well imbedded into the bottom of the water body beyond the frost line. Alternatively, place the Levelogger inside, rubber balloons filled with a non- toxic, non-corrosive anti-freeze solution or saltwater solution. The antifreeze solution will protect the Levelogger from ice expansion; yet transmit any pressure and temperature fluctuations.

Levelogger Maintenance

Generally, Levelogger maintenance means regular cleaning. Cleaning your Levelogger consists of rinsing and using a mild, non-residual, non-abrasive, household cleaner with a very soft plastic bristled brush. Do not insert any object through the pressure transducer inlets at the sensor end of the Levelogger.

Some cases may require specific maintenance:

Hard Water

Hard water can result in the precipitation of calcium and magnesium deposits on the Levelogger body and pressure transducer. These deposits can be dissolved using a diluted solution (≤ 10%) of acetic or phosphoric acid. Commercially available products designed for household use can also be used.

Suspended Solids

High suspended solid loads may block the pressure transducer inlets or clog the internal pressure cell. To minimize this, Leveloggers should be placed in areas with higher flow. Simply rinse the Levelogger inlets to remove any particles.

Bacteriological or Chemical Fouling

Sessile bacteria, other microorganisms, barnacles, mussels and algae can buildup on the Levelogger body, as well as the sensors. Chemical deposits can also be a result of electrical charge differential between the Levelogger and the monitored liquid. Both forms of fouling can be removed by soaking in a diluted (≤ 10%) solution of sulfuric acid. Hard-to-remove deposits may require several hours of soaking.

LTC Conductivity Pins

LTC conductivity pins are platinum-coated; therefore, they should not be roughly cleaned or touched with any metal. They can be cleaned with a soft bristle brush, Q-Tip, or cloth. Almost any diluted (≤ 10%) acid solution can be used. Soaking time should be monitored and kept to a minimum.

O-Ring Damage

There are o-rings on Levelogger optical ends and in the Levelogger caps, which are designed to prevent leaks. Depending on your application, you may be unscrewing the caps and/or direct read cables from the Levelogger optical end more frequently. This could result in damage to the o-rings. These o-rings should be inspected regularly and replaced as required (contact Solinst for replacements).

Storage Tips

Before storing Leveloggers for any extended period, they should be stopped from recording (using Levelogger Software), cleaned as described above, and stored with the cap on to protect the optical eyes and to prevent unnecessary battery drainage.

Follow these proper use and Levelogger maintenance tips, and your Levelogger should provide reliable water level monitoring through many seasons.
