| Model 3001 |

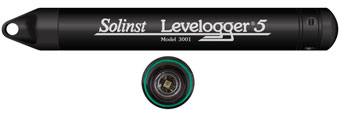

Levelogger 5
|

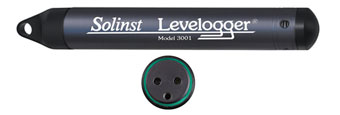

Levelogger Edge
|
|---|---|---|
| Pressure Transducer | Piezoresistive Silicon with Hastelloy® Sensor | Piezoresistive Silicon with Hastelloy® Sensor |
| Calibrated Ranges | 5, 10, 20, 30, 100, 200 m, Atm. Barologger 15, 30, 65, 100, 300, 600 ft, Atm. Barologger |
5, 10, 20, 30, 100, 200 m, Atm. Barologger 15, 30, 65, 100, 300, 600 ft, Atm. Barologger |
| Accuracy | Levelogger 5: ± 0.05% FS Barologger 5: ± 0.05 kPa |
Levelogger Edge: ± 0.05% FS Barologger Edge: ± 0.05 kPa |
| Resolution | 0.002% FS to 0.0006% FS | 0.002% FS to 0.0006% FS |
| Calibration | Factory – Lifetime calibration | Factory – Lifetime calibration |
| Response Time (90% Thermal Δ) |
1 minute / 10˚C change | 1 minute / 10˚C change |
| Automatic Temperature Compensation Range | Levelogger 5: 0 to +50°C Barologger 5: -10 to +50°C |
Levelogger Edge: 0 to +50°C Barologger Edge: -10 to +50°C |
| Over-pressure Range | 2 X | 2 X |
| Temperature Sensor | Platinum Resistance Temperature Detector (RTD) | Platinum Resistance Temperature Detector (RTD) |
| Temperature Accuracy | ± 0.05°C | ± 0.05°C |
| Temperature Resolution | 0.003°C | 0.003°C |
| Operating Temp Range | -20 to +80°C | -20 to +80°C |
| Clock Accuracy (typical) | ± 1 minute / year (-20 to +80°C) | ± 1 minute / year (-20 to +80°C) |
| Battery Life | 10 Years (based on 1 reading/minute) | 10 Years (based on 1 reading/minute) |
| Size | 22 mm x 160 mm (7/8" x 6.3") | 22 mm x 159 mm (7/8" x 6.25") |
| Weight | 166 grams (5.9 oz) | 129 grams (4.6 oz) |
| Memory | 150,000 sets of readings | 40,000 sets of readings |
| Memory Mode | Slate or Continuous | Slate or Continuous |
| Logging Rates | 0.125 sec to 99 hours | 0.125 sec to 99 hours |
| Logging Modes | Linear, User-Selectable Schedule with Repeat & Pause Modes, Event, Future Start, Future Stop, Real Time View | Linear, User-Selectable Schedule with Repeat & Pause Modes, Event, Future Start, Future Stop, Real Time View |
| Barometric Compensation | High accuracy, air-only, Barologger 5 | High accuracy, air-only, Barologger Edge |
| Display Units | Levelogger 5: cm, m, ft, psi, kPa, bar °C, °F Barologger 5: kPa, psi, mbar °C, °F |
Levelogger Edge: cm, m, ft, psi, kPa, bar °C, °F Barologger Edge: kPa, psi, mbar °C, °F |
| Corrosion Resistant Coating | Baked-on coating using polymerization technology (inside and out) | Titanium based PVD |
| Wetted Materials | Delrin®, Viton®, 316 L Stainless Steel, Hastelloy, Regulator approved PFAS-free PTFE | Delrin®, Viton®, 316 L Stainless Steel, Hastelloy, Ti PVD |
| Leveloader Gold Compatible | No | Yes (Leveloader firmware upgrade required) |
| Communication Interface | USB, RS-232, SDI-12 | USB, RS-232, SDI-12 |
| Communication Speed | 9600 bps, 57,600 with USB | 9600 bps, 38,400 with USB |
