1.4 Communication/Vented Cables

Communication Cables contain power and communication wires, as well as a vent tube running the length of the cable for the vented sensors. The vent tube and wires are jacketed in polyurethane, providing durability and protection. The cable is 8 mm (0.320") in diameter, while the connectors are 20 mm (0.790") in diameter.



The Vented Communication Cables have a vent tube to surface with a Gore vent cap to ensure airflow through, while preventing moisture from entering the tube.

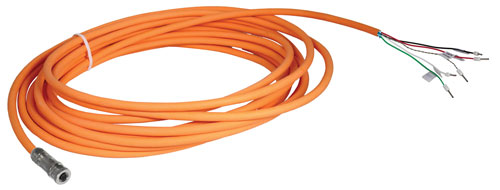

Non-Vented Communication Cable

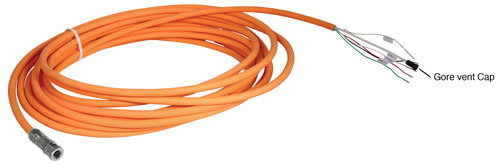

Vented Communication Cable


Figure 1-2 Communication/Vented Cables


Communication Cable Specifications
Wetted Materials: Polyurethane, Nickel plated Brass, Viton
Diameter: Cable: 8 mm (0.32")
Connector: 20 mm (0.79")
Lengths: Up to 300 m
Max. Bend Radius: 25 mm (1")
Operating Temperature: -20ºC to 80ºC
Vent Tube Moisture Protection: Built-in hydrophobic filters at sensor connection and plug at surface


Table 1-2 Communication Cable Specifications
