1 Introduction

Solinst Telemetry Systems provide an economical and efficient method to access remote data instantly. They provide communication between field located dataloggers and a Home Station computer.

Solinst Telemetry Systems are designed specifically for the high quality Levelogger series of dataloggers. Up to four Solinst dataloggers can be connected to one Remote Station, in any combination of the Levelogger Edge, Barologger Edge, Levelogger Junior Edge, LTC Levelogger Edge, Rainlogger Edge, LevelVent, AquaVent, Levelogger Gold, Barologger Gold, Levelogger Junior, LTC Levelogger Junior and Rainlogger. (See Levelogger or Vented Datalogger User Guides for more information on each datalogger).

Systems operate on two basic schedules. A linear “Sample Rate” is set, at which a Remote Station records a real-time reading from each attached datalogger. A “Report Rate” is set to establish the frequency that the data is sent from a Remote Station to the Home Station PC. Optionally, Leveloggers themselves can be set up to record and store data independently of the Telemetry System. This provides a reliable back-up if circumstances require it.

solinst rrl introduction what is an rrl remote radio link introduction what is a remote radio link what is a solinst remote radio link telemetry system image

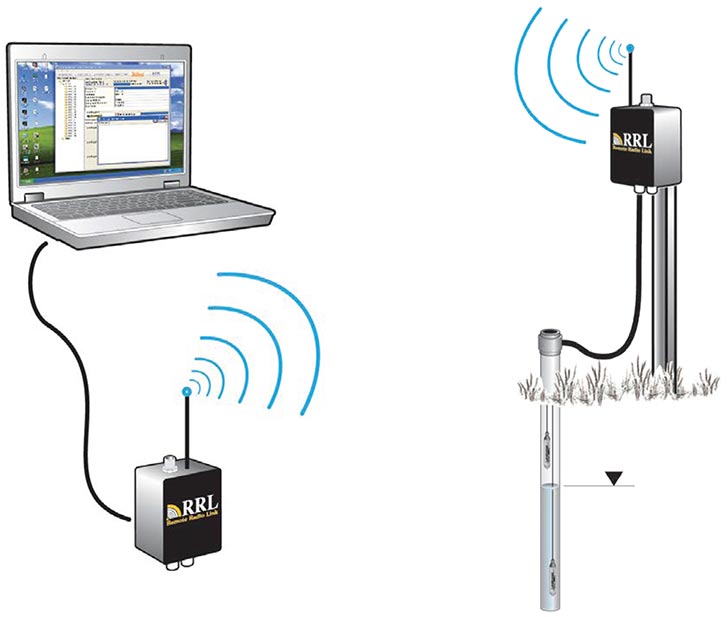

Figure 1-1 RRL System



This manual focuses on configuration, programming, and installation of Remote Radio Link (RRL) Systems. It also discusses the various options to power the Systems. It includes instructions for installing and using Solinst Telemetry Software to set up data collection schedules, manage data, and perform remote diagnostic checks.

Note:

You can bridge an RRL Network with an STS Edge Telemetry System (which uses cellular communication). See the STS Edge User Guide for more details.



Remote Radio Link Specifications
Communication: 900 MHz radio
Antenna: 6" (15 cm) half wave, (2.1dBi) non-articulating
Sampling Interval: 10 seconds - 99 hours
Reporting Interval: 1 minute - 99 hours
Power Supply: 6 3.6V AA replaceable lithium batteries
Battery Life Example: 680 days based on hourly sampling and reporting twice a day (1 Watt setting)
Memory Capacity:
(Between Reports)
128 KB (13,000 LT or 10,000 LTC readings)
Operating Temperature: -20ºC to 50ºC
Size: Fits in a 4.5" diameter well
IP Rating: IP66 (dust and water proof, can not be submerged)

Table 1-1 Remote Radio Link Specifications
