Locking Well Caps for Leveloggers

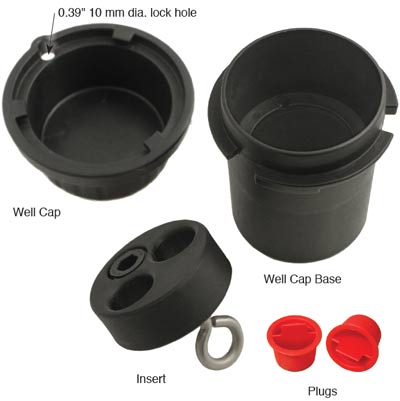

Model 3001 Well Cap Assembly

The Model 3001 Well Cap Assembly is designed to fit 2" wells, and provides options for installing Leveloggers with wireline, Kevlar rope, or using a Direct Read Cable.

The well cap base provides a tight friction fit onto the well casing. The cap is secured to the base with a twist lock. For further security, a 3/8" (9.5 mm) shackle diameter lock can be used. The Well Cap is vented to allow for the equalization of barometric pressure in the well.

Users can choose to permanently secure the PVC Well Cap to the well casing, using three screw points on the inner shoulder of the Well Cap Base.



Direct Read Cable Installation

To install using a Direct Read Cable, lower the Levelogger with the Direct Read Cable through one opening in the insert.

solinst levelogger locking well cap instructions levelogger locking well cap instructions 110165 2 inch levelogger well cap instructions 4 inch levelogger well cap instructions well cap assembly instructions levelogger well cap assembly instructions installing leveloggers using direct read cables with locking well cap image

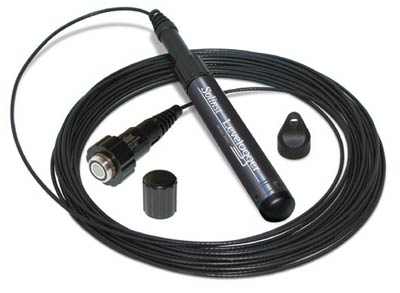

Direct Read Cable Assembly Connected to a Levelogger Edge



solinst levelogger locking well cap instructions levelogger locking well cap instructions 110165 2 inch levelogger well cap instructions 4 inch levelogger well cap instructions well cap assembly instructions levelogger well cap assembly instructions installing leveloggers using direct read cables with locking well cap image

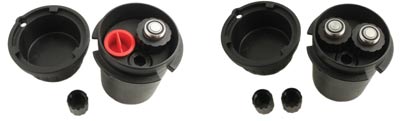

Single and Dual Levelogger Well Cap Installation Options



Note:

The insert has openings to hold two dataloggers in the same well. If only one datalogger is used, the other hole provides access for Solinst Water Level Meters.

solinst levelogger locking well cap instructions levelogger locking well cap instructions 110165 2 inch levelogger well cap instructions 4 inch levelogger well cap instructions well cap assembly instructions levelogger well cap assembly instructions installing leveloggers using direct read cables with locking well cap image

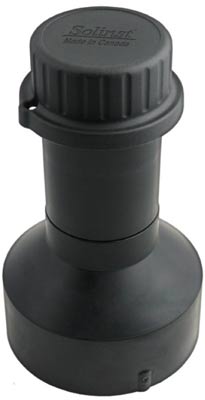

4" Well Cap Reducer

If installing Leveloggers in a 4" well, a reducer assembly is available. (#110235).



solinst levelogger locking well cap instructions levelogger locking well cap instructions 110165 2 inch levelogger well cap instructions 4 inch levelogger well cap instructions well cap assembly instructions levelogger well cap assembly instructions installing leveloggers using direct read cables with locking well cap image

Model 3001 Well Cap Assembly (#110099)



Wireline/Kevlar Rope Suspension

For wireline or Kevlar rope suspension, simply use the suspension hook on the underside of the insert to secure the Levelogger to one Well Cap.

solinst levelogger locking well cap instructions levelogger locking well cap instructions 110165 2 inch levelogger well cap instructions 4 inch levelogger well cap instructions well cap assembly instructions levelogger well cap assembly instructions installing leveloggers using direct read cables with locking well cap image

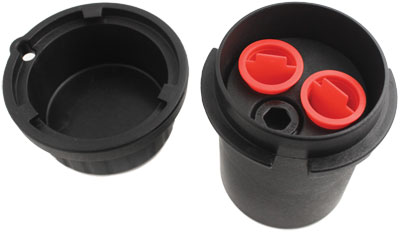

Two Plugs Installed in Insert





solinst levelogger locking well cap instructions levelogger locking well cap instructions 110165 2 inch levelogger well cap instructions 4 inch levelogger well cap instructions well cap assembly instructions levelogger well cap assembly instructions installing leveloggers using direct read cables with locking well cap image

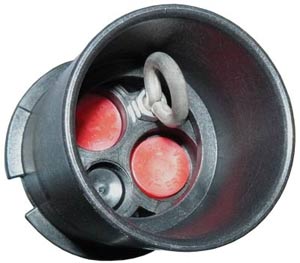

Suspension Hook on Underside of the Insert
