2.1 Communicating with the WLTS PC Software Utility

The WLTS Utility is Windows®-based, and is therefore used with a desktop or laptop PC.

To communicate with the PC, the Solinst Water Level Temperature Sensor must be connected using the supplied USB-A Programming Cable. To connect to the Sensor, line up the pin and socket. Gently push the connections together and twist slightly until you feel/hear a small click when the properly aligned connection is made. Only tighten the coupling while holding the cable still. Tighten the coupling until it seats. Plug the USB-A Programming Cable into your computer.


connecting the usb a programming cable to the top of the solinst water level temperature sensor

Figure 2-1 Connecting the USB-A Programming Cable

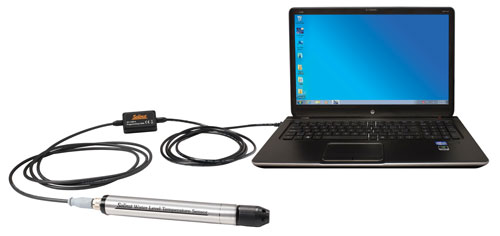

wlts pc software utility communication

Figure 2-2 WLTS PC Software Utility Communication
