Downloading and Working with LevelVent 5 Data

  1. Click the 'Data Control' tab to access the 'Data Control' window. This window is laid out in three sections: datalogger settings, tabular data, and graphical data.
  2. Download LeveloggerTo download the data from a connected LevelVent, select the 'Download Data' icon. There are four options for downloading data. They are: All Data, Append Download, Partial Download and Download Files. The data will be presented in both tabular and graphical format.
  3. Note:

    The default directory for downloaded and saved data is in the 'Data' folder: <C:\Program\Files\Solinst\Levelogger 4_6\Data>. Data is saved as a .xle data file.

  4. Save Levelogger DataTo save data, click the 'Save Data' icon and input desired name for the saved file.
  5. Export Levelogger DataTo export the file for use in other software, click the 'Export' icon. The file can be exported to a *.csv or *.xml file.

Note:

To change the default directory for downloaded data, use the 'Configuration' menu at the top of the software window. Select 'Application Settings' and input or navigate to a different folder destination. Click 'OK'.

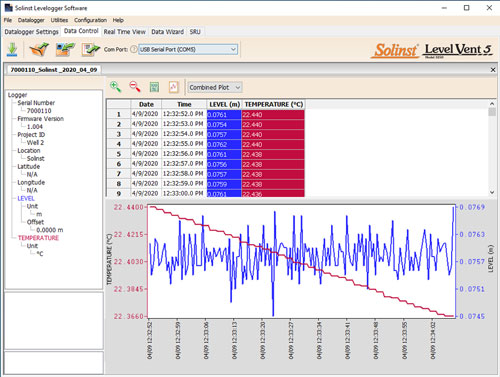

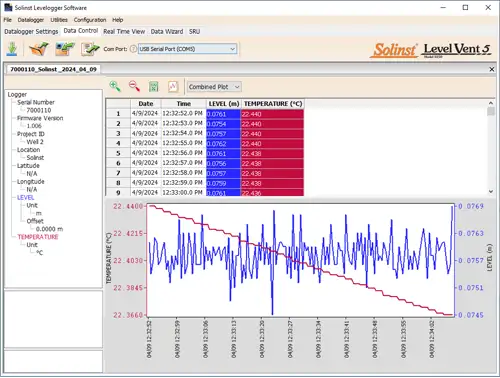

solinst levelogger software data control window

Data Control Window

Tip:

The *.csv and *.xml file formats are supported and can be imported by most spreadsheet and database programs.

The data graph can be exported to a *.bmp file or a *.png file by clicking File > Export > Graph.
