Levelogger 5 App Interface Quick Start Guide for Apple®

Introduction

solinst levelogger 5 app interface bluetooth wireless device



The Levelogger® 5 App Interface uses Bluetooth® wireless technology to connect a Solinst datalogger to Apple® devices running iOS 13.0, or later. Please see list of supported devices on the last page of this quick start guide.

Once connected, you can use the Solinst Levelogger App to communicate with the datalogger. The Solinst Levelogger App allows you to view real time data from the connected datalogger, as well as view and download logged readings. You can also program the dataloggers or apply a saved settings file.

The Levelogger 5 App Interface is compatible with the Levelogger 5 series of dataloggers, LevelVent 5, and AquaVent 5, as well as previous Levelogger Edge and Gold series dataloggers, and LevelVent and AquaVent using their most current firmware versions.



Levelogger 5 App Interface

Connection

The Levelogger 5 App Interface connects to the top end of a Levelogger's L5 Direct Read Cable or L5 Optical Adaptor, a LevelVent 5 Wellhead, or an AquaVent 5 Wellhead Connector Cable.

To connect the Levelogger 5 App Interface, simply hold onto the top end of the Direct Read/Connector Cable/Wellhead, and thread the coupling of the Levelogger 5 App Interface onto the connection. The threaded connection is designed to be stable when installed on a Direct Read Cable or LevelVent Wellhead in a Solinst 2" Well Cap Assembly.

Alternatively, you can use a L5 Threaded or Slip Fit Adaptor, when a Direct Read Cable is not being used. Simply thread or slip the Levelogger into the optical end, and thread the Levelogger App Interface into the other connection.

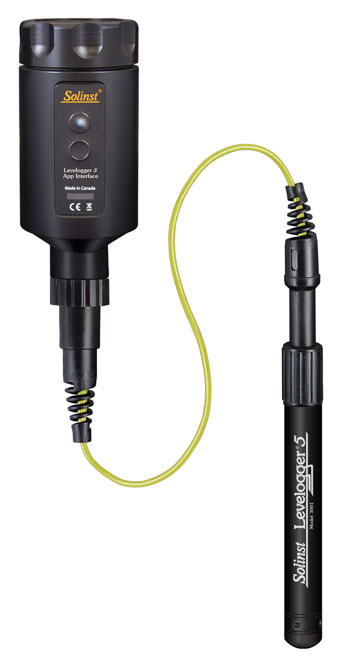

solinst direct read cable

L5 Direct Read Cable

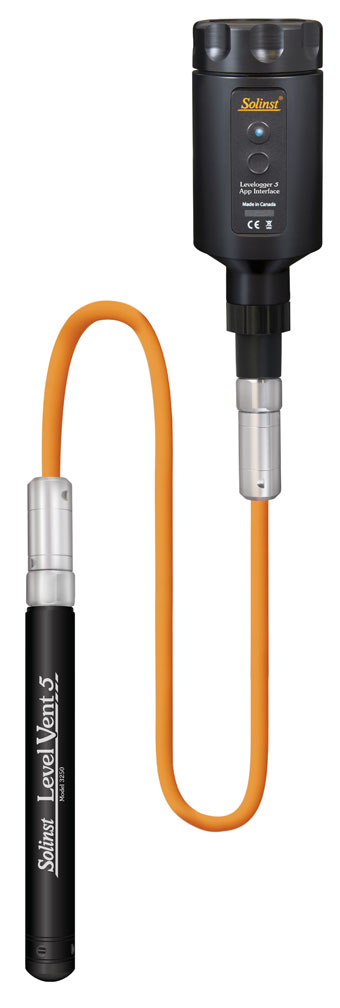

solinst levelogger app interface connected to levelvent vented groundwater datalogger

LevelVent 5 Wellhead

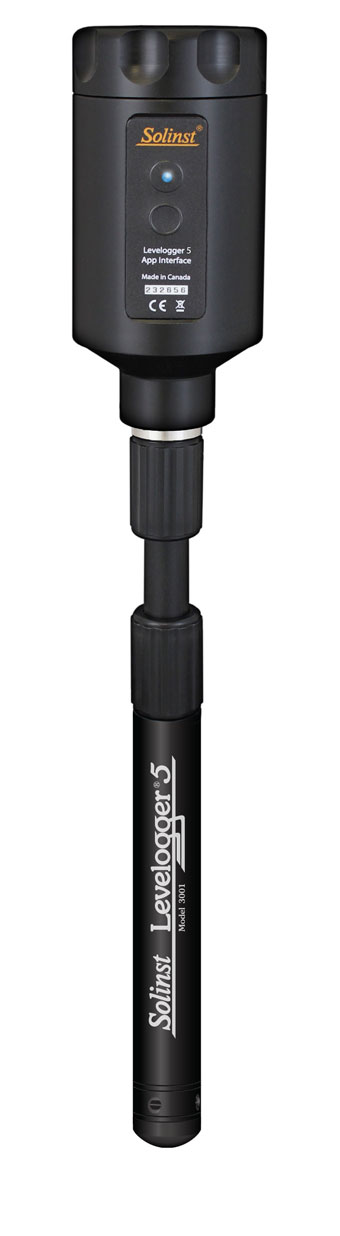

solinst direct read to optical adaptor

L5 Threaded Adaptor

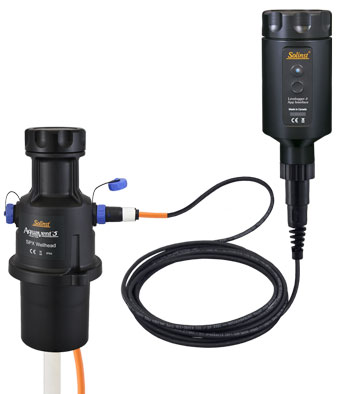

solinst levelogger app interface connected to aquavent vented water level dataloggers

AquaVent 5 Wellhead and App Connector Cable





Batteries

The Levelogger 5 App Interface uses four 1.5V AA replaceable lithium batteries (alkaline batteries can also be used, but will have a much shorter life). To change the batteries:

  1. Unscrew the top of the Levelogger 5 App Interface, to access the battery holder.
  2. Carefully remove the battery holder from the Levelogger 5 App Interface housing.
  3. Ensure proper polarity when replacing the batteries.
  4. Slide the battery holder back into the Levelogger App Interface housing, ensuring it is properly lined-up.
  5. Screw the top of the Levelogger 5 App Interface firmly back onto the housing.

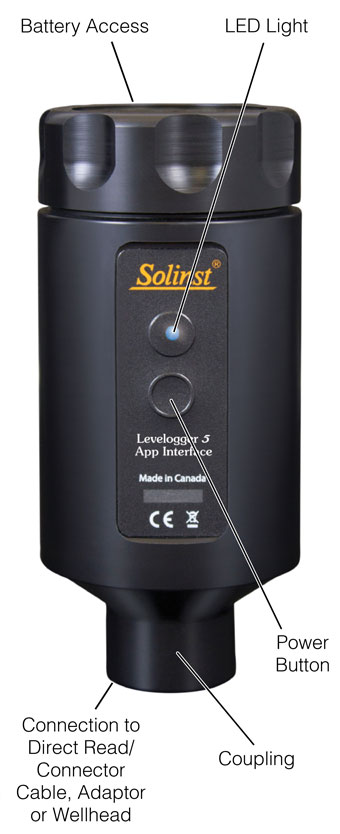

Power Button and LED Light

To turn the Levelogger 5 App Interface on, press and hold the power button for 1 second. To turn the Levelogger 5 App Interface off, press and hold the power button for 3 seconds. The App Interface will automatically turn off after 10 minutes of inactivity.

The LED light indicates the status of the Levelogger 5 App Interface when it is turned on:



Using the Levelogger 5 App & Interface

  1. Download the Solinst Levelogger App on your smartphone device.
  2. Connect the Levelogger 5 App Interface to the top end of your Levelogger's Direct Read Cable or Adaptor, LevelVent Wellhead or AquaVent Wellhead Connector Cable. Turn the Levelogger 5 App Interface on by pressing the power button.
  3. Enable (turn on) Bluetooth on your smartphone device by going to Settings > General > Bluetooth. Pair the Levelogger 5 App Interface to your smartphone by selecting it from the list of Bluetooth devices.
  4. Launch the Solinst Levelogger App and connect to your datalogger
  5. Once you are finished downloading data, e-mailing data, viewing real-time readings, or programming your datalogger, disconnect the App Interface, and connect to a datalogger at your next monitoring location. The App Interface is not intended for dedicated applications.
