4.0 Real-Time Readings

4.1 Take a Reading

Select Take a Reading to instantly display the current water level (water column height above the pressure sensor), temperature, and conductivity being detected by the connected datalogger.

Note:

Only LTC Leveloggers will display conductivity readings.

Note:

See the Levelogger User Guide (Section 1.2) and Vented Dataloggers User Guide (Section 1.2) for an explanation of the pressure sensor measurement fundamentals.



solinst readout unit take a reading screen

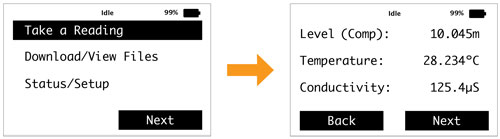

Figure 4-1 Take a Reading



The water level reading will indicate "Comp" as it is a compensated level reading. See Section 4.2 for more details.
