4.8.2 STS Diagnostics

The Diagnostics tab is used to verify the STS Telemetry System connection with the Home Station and dataloggers, and to test the battery.

Click to retrieve information and settings from the connected STS.

solinst sts telemetry system diagnostics tab

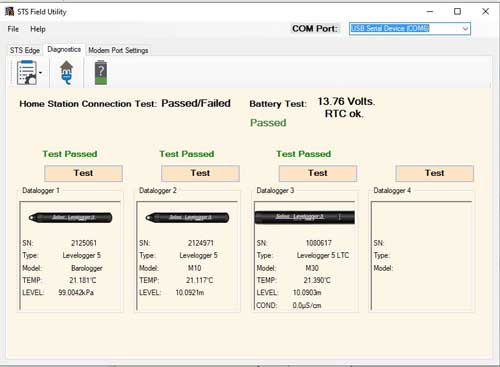

Figure 4-20 Diagnostics Tab


Click to test the STS connection with the Home Station.

Click to check the STS Remote Station battery voltage.

For each datalogger connected, click Test. If successful, information about each connected datalogger will be displayed. Real-time readings from the dataloggers will also be shown.


You can also test each datalogger by using the drop-down menu.
