7.2 Transfer Data

To transfer data files from the SRU to a PC, Connect the SRU to the PC using a USB cable. The SRU will automatically turn on and the LCD screen will show a message indicating the SRU is connected to the PC.

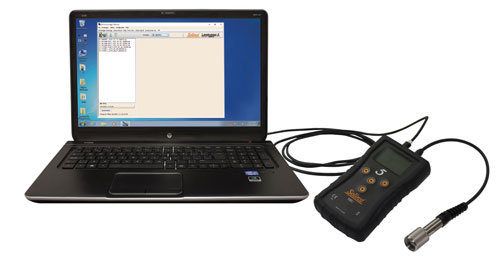

solinst readout unit sru to pc connection with usb cable

Figure 7-2 SRU to PC Connection



To start the Levelogger Software, click , or click the Start button and select:
Programs > Solinst > Levelogger 4 > Levelogger 4.6.1

Go to the SRU tab and select the appropriate Com Port for the connected SRU from the centre drop-down menu and Click the 'Retrieve SRU Settings' icon .

A destination folder window will open where you can choose the location your log files will be saved.

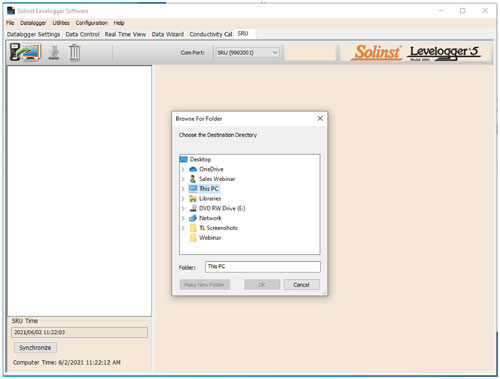

solinst levelogger software sru tab select data file location

Figure 7-3 Levelogger Software SRU Tab – Select Data File Location



Select the file(s) from the list that you want to download, and click the 'Download Data' icon .

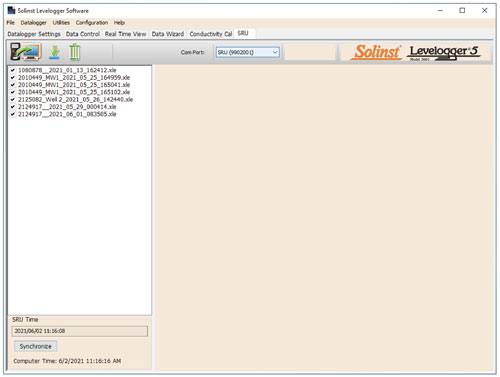

solinst levelogger software sru tab

Figure 7-4 Levelogger Software SRU Tab
