7.2 Graph Manipulation and Zoom Function

To perform the Zoom In function on the graph, click .

To perform a Zoom Out function on the graph click . Click to undo all the zoom functions.

Note:

Right click, and drag the mouse to scan the data graph.

The Zoom functions can also be used for data selections in the graph.

Click to open the Graph Option Dialog. The Graph Dialog is shown in Figure 7-6.

Note:

As there is only one channel of data for Rainloggers, there are no graphing options.

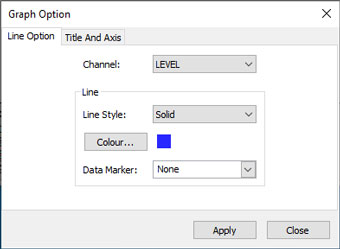

figure 7-6 line option window

Figure 7-6 Line Option Window



The Line Option is used to adjust the style and colour of the line in the graph for each channel. The user can also select the shape of the data marker or remove the data marker.

solinst leveloggers graph manipulation and zoom function levelogger software graph manipulation levelogger graph zooming function graphs line options graph options title and axis window channel selection window channel selection option image

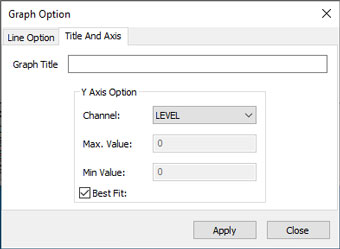

Figure 7-7 Title and Axis Option Window



The Title and Axis Option is used to enter the title of the graph and change the Y axis label or user selected scale. Check the Best Fit box to enable the software to determine the best fit scale. If the Best Fit box is not checked, the user has to enter a maximum and minimum value of the selected channel. The X axis is logging time.

There is the option to show Combined Plot graphs or Separated Plot graphs of the data. Choosing a Combined Plot will show the data from each of the channels in one graph. The Separated Plot option will show a separate graph for each data channel.

solinst leveloggers graph manipulation and zoom function levelogger software graph manipulation levelogger graph zooming function graphs line options graph options title and axis window channel selection window channel selection option image

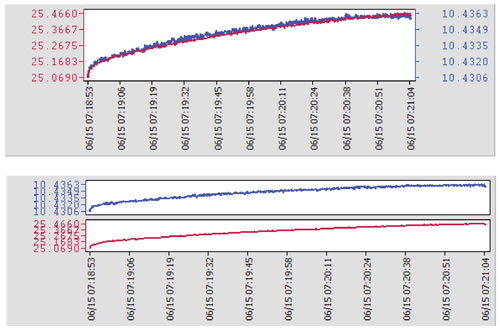

Figure 7-8 Combined and Separated Plot Graphs



There is also the option to view more than one graph at a time. Click and drag a File Name Tab and drop it when you see a shaded area on the window to open a separate graph of that data file. You can view any number of graphs at one time by re-sizing your window as required.

solinst leveloggers graph manipulation and zoom function levelogger software graph manipulation levelogger graph zooming function graphs line options graph options title and axis window channel selection window channel selection option image

Figure 7-9 Viewing Two Graphs
