Connecting to the SolSat 5 Wi-Fi App

Initial setup for each SolSat 5 is done wirelessly using the integral SolSat 5 Satellite Telemetry Wi-Fi App.

  1. The SolSat 5 will be in deep sleep mode. Turn on/wake up the SolSat 5 by pressing the power button for 2 seconds. Within 1 minute, a Wi-Fi signal will start broadcasting.
  2. In your mobile device's Wi-Fi settings menu, select the "SolSat 5" SSID signal. If this does not appear right away, wait an additional 2 minutes, then refresh the Wi-Fi list.
  3. Note:

    The default password is 8006612023, you can change this later using the Settings in the App.

  4. With the Wi-Fi connected, open the web browser on your device and enter "10.10.10.10" in the address bar, then press "go" or enter.
  5. Note:

    If the App does not open, clear your browser history and try again. If it still doesn't open, check your firewall settings.

  6. The built-in App will open. To navigate, click the drop-down menu located in the top left corner. The SolSat 5 will stay "ON" as long as you are connected by Wi-Fi to the App. Once you disconnect or the screen goes blank, it will go to sleep after 3 minutes.
  7. You can change the security settings for your Wi-Fi network by going to Settings; this includes changing the password from the default.
  8. Note:

    When not in use, turn the SolSat 5 OFF using the Settings menu in the App.

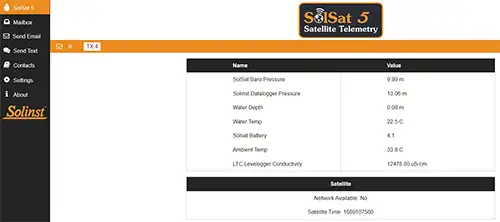

solinst solsat 5 satellite telemetry system wifi app main screen

SolSat 5 Wi-Fi App Main Screen
