1.4.1 Communication Cable Connections

To connect the Communication/Vented Cable to the sensor (after programming – see Section 2), line up the pin and socket. Gently push the connections together and twist slightly until you feel/hear a small click when the properly aligned connection is made. Only hand-tighten the coupling while holding the cable still. Tighten the coupling until it seats.

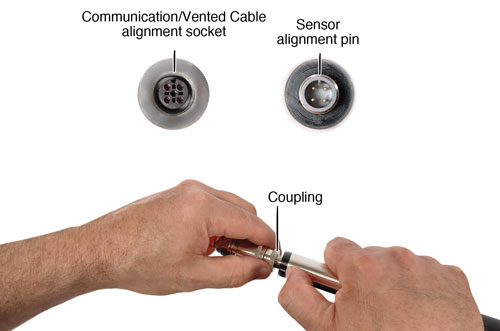

figure 1 3 water level temperature sensor communication cable connections

Figure 1-3 Water Level Temperature Sensor Communication Cable Connections
