6.0 Datalogger Status

To view information about the connected datalogger, scroll to Status/Setup, select Next, then Logger Status.

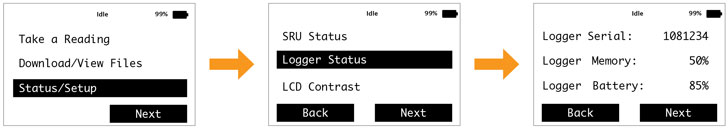

solinst readout unit logger status screen menu sequence

Figure 6-1 Logger Status


Select Next to continue viewing information including serial number, battery level, memory, logging mode and status, project information, and firmware version.

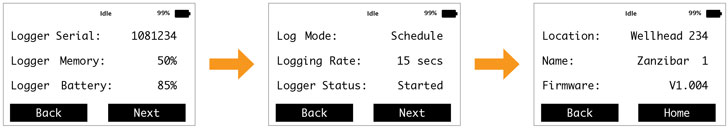

solinst readout unit logger information menu sequence

Figure 6-2 Logger Information
