If set, an alarm message will be sent once per day if the alarm parameter is met.
For Plans 1 and 2, select the check-box to Set the Alarm. The alarm will be based on your selected data format (see Section 4.3).
Note:
If you have selected Plan 3, you can set alarms using the solinstsat.com web portal. See Section 5.1.3.
You can select a Value (positive or negative) that if the sampled measurement goes Above or Below will trigger an alarm message to be sent.
Click Next to continue the setup.
Note:
Alarms can also be set remotely using the options in the solinstsat.com web portal. See Section 5.1.3.

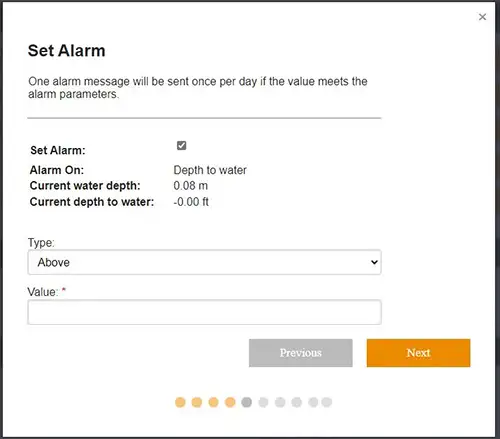

Figure 4-7 SolSat 5 Alarm Setup – Plans 1 and 2

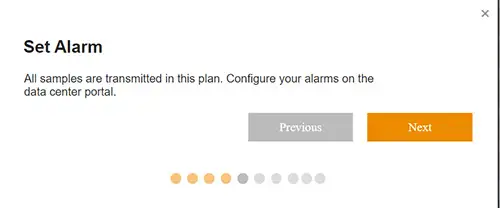

Figure 4-8 SolSat 5 Alarm Setup - Plan 3
