- Click the ‘Data Control’ tab to access the ‘Data Control’ window. This window is laid out in three sections: Levelogger settings, tabular data, and graphical data.
- To download the data from a connected Solinst Levelogger, select the ‘Download Data from Levelogger’ icon. There are four options for downloading data. They are: All Data, Append Download, Partial Download and Download Files. The data will be presented in both tabular and graphical format.
- To save data, click the ‘Save Data’ icon and input desired destination. Click ‘OK’. name for the saved file.
- To export the file for use in other software, click the ‘Export’ icon. The file can be exported to a *.csv or *.xml file.
The default directory for downloaded and saved data is in the 'Data' folder: <C:\Program\Files\Solinst\Levelogger 4_5\Data>. Data is saved as a .xle data file.
To change the default directory for downloaded data, use the 'Configuration' menu at the top of the software window. Select 'Application Settings' and input or navigate to a different folder destination. Click 'OK'.
The *.csv and *.xml file formats are supported and can be imported by most spreadsheet and database programs.
The data graph can be exported to a *.bmp file or a *.png file by clicking File > Export > Graph.

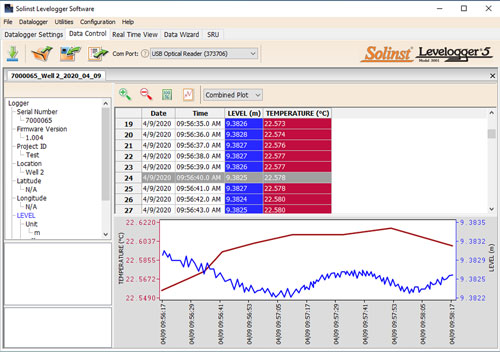

Data Control Window

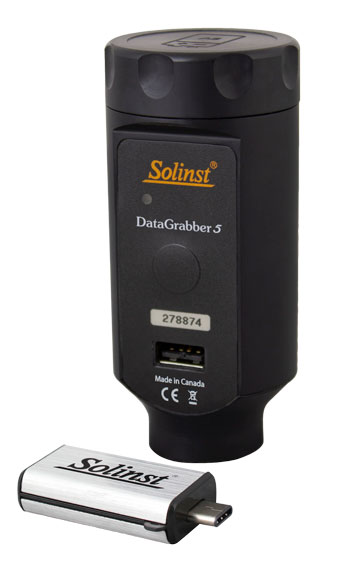

Connect a DataGrabber 5 to an in-field Levelogger via an L5 Direct Read Cable or L5 Threaded or Slip Fit Adaptor, and transfer data to a USB key.
