| Specifications |
Radio |
Cellular (4G LTE-M) |
Cellular (4G LTE Digital) |
Satellite |
| Why Use? |
- fits in a 2” (50 mm) well
- built-in barometer
- no cellular coverage available
- smaller applications
- closed-loop network at any location
|
- fits in a 2" (50 mm) well
- built-in barometer
- cellular coverage available
- topography not suitable for radio
- alarm notifications
|
- cellular coverage available
- topography not suitable for radio
- alarm notifications
|
- large, remote area to cover
- topography not suitable for radio
- cellular coverage not available
- built-in barometer and solar panel
- alarm notifications
|
| System Differences |
- built-in barometer
- free airtime, no long distance fees
- you control the network
- Interchangeable stations
|
- built-in barometer
- monthly carrier and optionally low cost Solinst Cloud fees
- data sent to Solinst Cloud or via FTP file transfer; email/SMS also options
|
- monthly carrier fees
- data sent over the Internet
|
- built-in barometer and solar panel
- monthly/annual global texting fees
- data sent via satellite transmission
|
| Suggested Applications |
- monitoring mine sites
- agricultural studies
- landfill supervision
- golf course managemen
|
- flood and stormwater management
- watershed management
- drought monitoring
- early warning plume detection
|
- flood and stormwater management
- watershed management
- drought monitoring
- early warning plume detection
|
- flood and stormwater management
- watershed management
- drought monitoring
- early warning plume detection
|
| Remote Station Support |

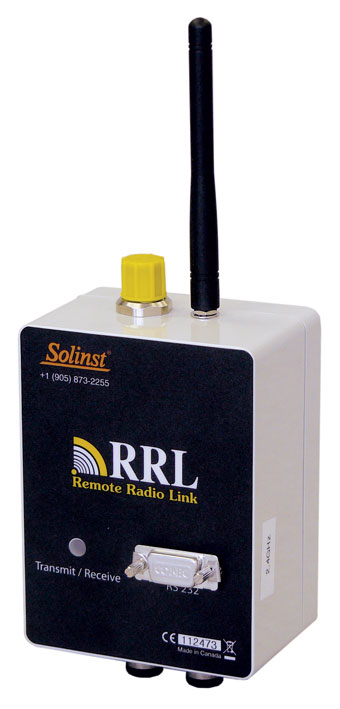

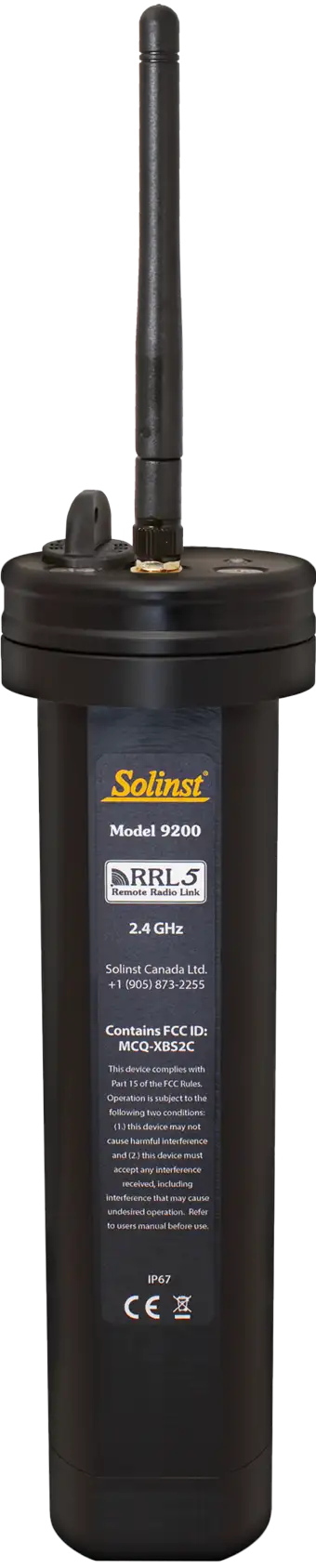

- 900 MHz or 2.4 GHz radio
- 9600 bits/sec
|
- cellular radio module
- dynamic IP address
- email address optional
|
- IP enabled modem
- dynamic IP address
- 115200 bits/sec
|
- Iridium Satellite modem
- built-in Wi-Fi App for remote communication
|
| Home Station Support |
- RRL Home Station radio with power source
- STS/RRL PC Software
|
- email address & LevelSender PC Software or Solinst Cloud
- no extra hardware
|
- static IP address
- STS/RRL PC Software
- no extra hardware
|
- Wi-Fi App in mobile device browser
- Secure Web Portal for data
- no extra hardware
|
| Datalogger Support |
Connect one datalogger, or two using a splitter |
Connect one datalogger, or two using a splitter |
Connect up to four dataloggers |
Connect one datalogger |
| Data Transmission |
- saved in a database on the Home Station computer (.mbd file). Database is appended as new data is received
- data can be exported using STS/RRL Software as .lev, .csv or .xle files
- barometric compensation can be done using STS/RRL Software
|
- sent to Solinst Cloud, or
- sent as text or .csv files to FTP server
- sent as text to multiple email and an SMS recipient
- data from each email/SMS saved as .xle file on the Home Station computer (exported using LevelSender Software)
- saved in a database on the Home Station computer (.sqlite file). Database is appended as new data is received
|
- saved in a database on the Home Station computer (.mbd file). Database is appended as new data is received
- data can be exported using STS/RRL Software as .lev, .csv or .xle files
- barometric compensation can be done using STS/RRL Software
|
- sent via TextAnywhere (SMS)
- saved in a database on a secure web portal. Data is appended as new data is received; can be viewed in a list or graph
- data can be exported as .csv or .xle files
- logged data can be downloaded from a SolSat 5 using the Wi-Fi App
|
| Antenna |
Whip, Bracket Mount, RPSMA, Omnidirectional, with 2 m (6.5 ft) cable. 2.4 GHz: 3 dBi, 900 MHz: 1.6 dBi |
Cellular SME Male Monopole 2dBi |
2 x 700/850 MHz BLADE SMA Male |
High-performance helical |
| Typical Coverage |
Based on radio type and line-of-sight |
Based on cellular network |
Based on cellular network |
Global connectivity |
| Optional Antenna |
Higher gain, RP- SMA connector |
LTE Omni Wall/Pole Mount 790–960MHz, 1710–2690MHz and 3400–3800MHz |
Quad Band, Omni Directional |
n/a |
| Power |
6 AA lithium batteries |
3 AA lithium batteries |
12V 12-30 AHr deep-cycle, rechargeable sealed lead-acid battery recommended (not included) |

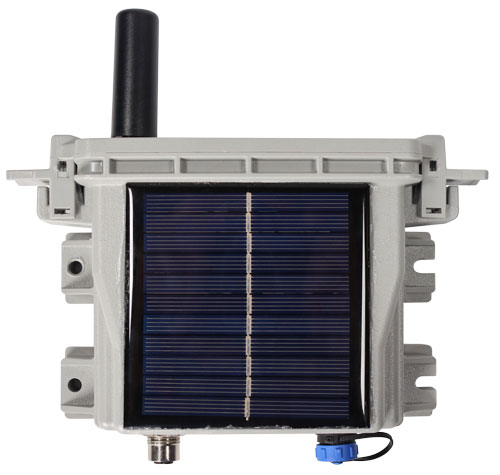

2 x 3.4 Ah LiPo rechargeable batteries, 2 Watt built-in solar panel |
| External Power and Charge Accessories |
None |
None |
- Solar power connection package (for user supplied solar panel)
- AC power/battery charger assembly
|
- 2-pin Bulgin connection for battery recharging via USB cable, or for additional solar panel
|
| Solinst SIM Option |
n/a |
|
|
n/a |
| No Data Hosting Fees |
|
Optional – Low Cost Solinst Cloud |
|
(included in data plan) |
| Remote Diagnostic Reporting |
|
|
|
|
