8.2.1 View Compensated Data

If you have set up barometric compensation (see Section 4.5), check "Show Compensated Data" to view the automatically compensated data.

The compensated data will be in the units that the Levelogger was programmed to record in. E.g.: if your Barologger was set to record in psi and your Levelogger was set to record in feet, the compensated data will automatically be converted to feet.

view compensated data in solinst sts  telemetry system

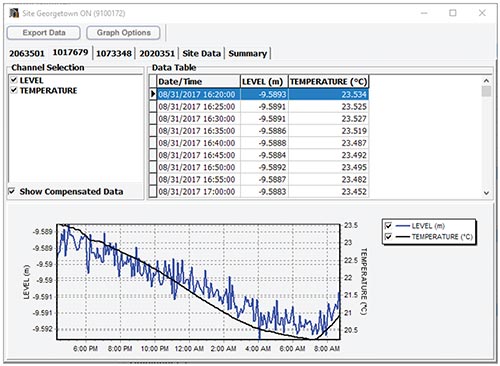

Figure 8-4 View Compensated Levelogger Data
