Waterloo Emitters Used For Bioremediation Study In High Temperature Saline Groundwater

Download Newsletter

A study was undertaken to determine the success for aerobic bioremediation of aromatic hydrocarbons (BTEX) and MTBE (methyl tert-butyl ether) in high temperature, saline groundwater conditions. The study included laboratory microcosm experiments, as well as a field trial in Saudi Arabia, in which Solinst Waterloo Emitters were used.

To view the full paper published about this study, please visit the Wiley Online Library.

solinst waterloo emitter bioremediation device installed in a groundwater well

The 703 Waterloo Emitter™ is a simple, low cost device for the controlled release of oxygen or other amendments to encourage and sustain the growth of microorganisms, required for in-situ bioremediation of contaminated groundwater. Ideal for the diffusion of oxygen to enhance the bioremediation of BTEX and MTBE. Available to fit 2″, 4″ and 6″ (50, 100 and 150 mm) wells and boreholes, the Emitters are easy to install and remove. They do not require constant monitoring and attention, or electricity.
Get a Quote!

The laboratory experiments compared sediment and groundwater samples from two different aquifers, which were spiked with hydrocarbons and incubated for 106 days. One sample was from an aquifer in Canada (low temperature, low salinity), the other from a saline coastal aquifer located in a hydrocarbon distribution facility in Saudi Arabia (groundwater temperatures >30ºC). Oxygen was periodically added to each microcosm to sustain aerobic conditions, and temperatures were maintained to simulate field conditions.

After incubation, the Canadian microcosm displayed no significant biodegradation of hydrocarbons or MTBE. The Saudi Arabian microcosm showed that the hydrocarbons had almost completely degraded, but no significant change in MTBE concentrations. Further analysis revealed that the Canadian microcosm had diverse microorganisms, but no change in numbers during the experiment. The Saudi Arabian microcosm had many hydrocarbon degrading bacteria, which increased during the experiment.

Following the laboratory tests, a seven-month field trial was undertaken at the Saudi Arabian field site. The field study aimed to test the effectiveness of enhanced in situ aerobic bioremediation in the high temperature, high salinity aquifer.

The aquifer contains a plume of BTEX (benzene, toluene, ethylbenzene, xylenes), MTBE and other aromatic hydrocarbons. It is unconfined, consisting of sand and some silt, with the water table at approximately 6.5 m. The temperature of the aquifer varied from 30 – 37.4ºC during the study period, with an electrical conductivity of 6.1 mS/cm.

To stimulate the aerobic conditions, Solinst Waterloo Emitters were selected to diffuse dissolved oxygen into the groundwater surrounding the plume. Waterloo Emitters were selected because of their low maintenance and operational costs, which is ideal for the hot, dry, dusty desert conditions. Waterloo Emitters require few components to operate (or replace), which is also ideal for the location.

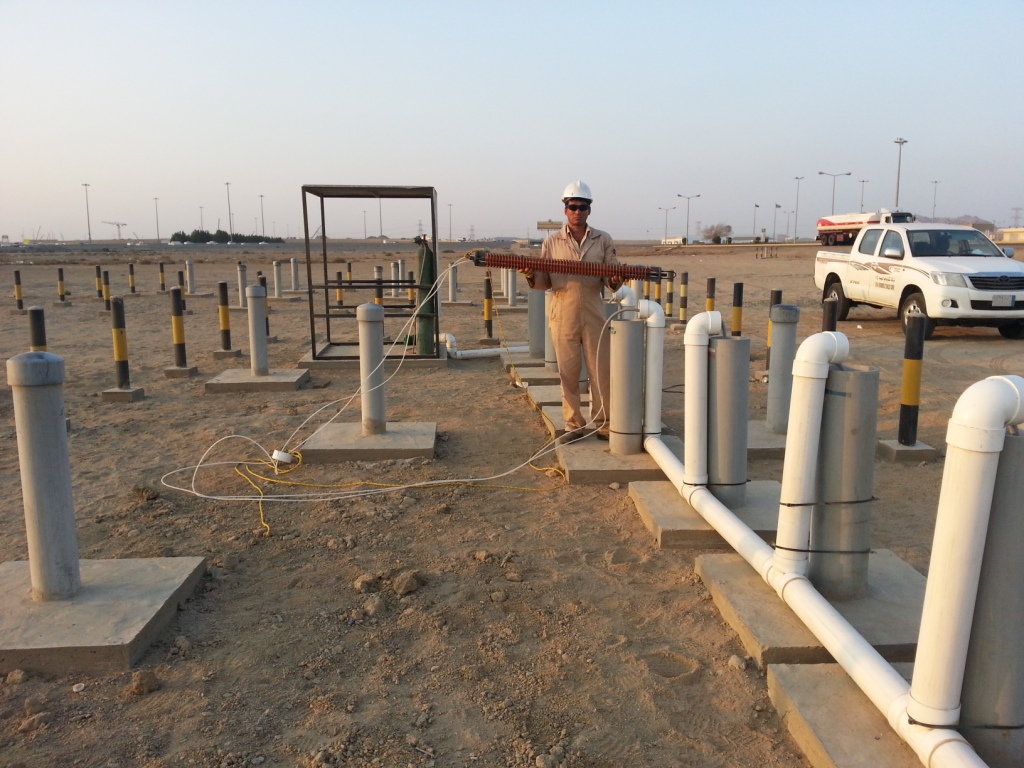

Waterloo Emitters were Recommended Due to the Remote Conditions
Waterloo Emitters were Recommended Due to the Remote Conditions

Ten Waterloo Emitters were installed on 1 m centers in a series, perpendicular to groundwater flow, creating a reactive zone. The 3.8″ diameter Emitters with LDPE (low density polyethylene) diffusive tubing, were installed in 4″ diameter monitoring wells with 3 m long screens over the water table. Oxygen cylinders were used to supply the Emitters.

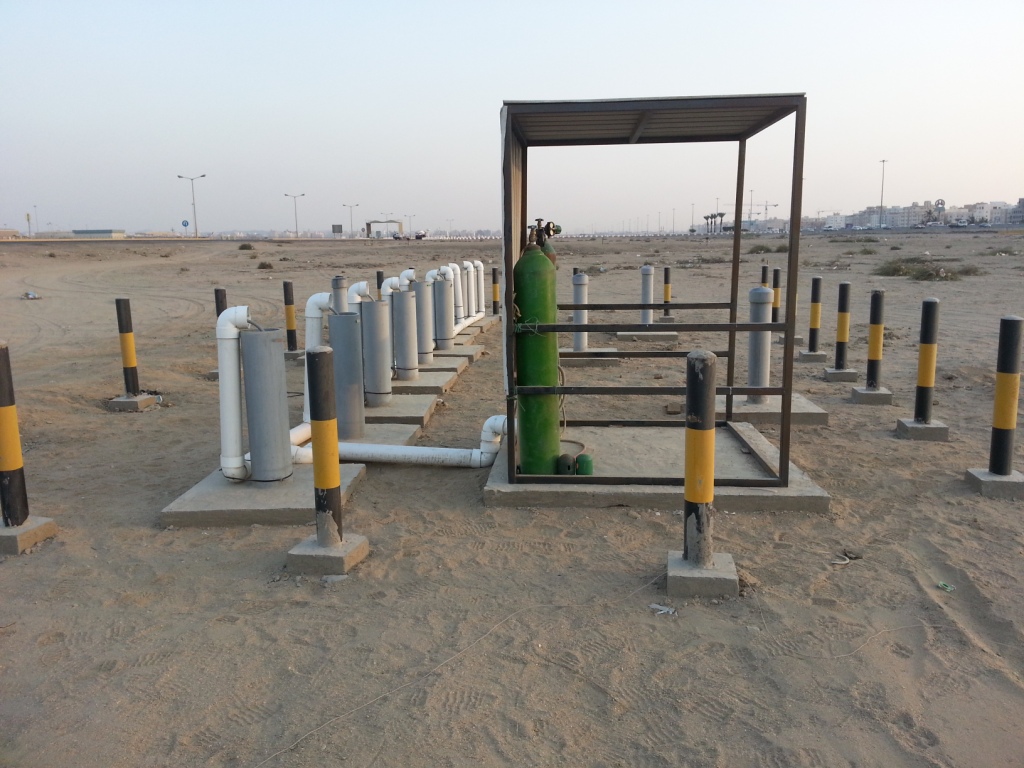

Solinst Waterloo Emitters were Installed in a Series Perpendicular to Groundwater Flow
Solinst Waterloo Emitters were Installed in a Series Perpendicular to Groundwater Flow

Groundwater samples were taken from monitoring wells upgradient and downgradient of the Waterloo Emitter reactive zone. Two sampling rounds were performed to obtain baseline values, and six subsequent sampling rounds were performed during the study period. The monitoring wells were sampled for chemical parameters, as well as to estimate bacteria populations.

The sampling results showed that there was a significant reduction in the concentrations of BTEX, MTBE, and other aromatic hydrocarbons, as the impacted groundwater flowed through the reactive Emitter zone (see Figure 1). The mass removal value of the BTEX compounds was greater than 80%, while the value for MTBE was 40%.

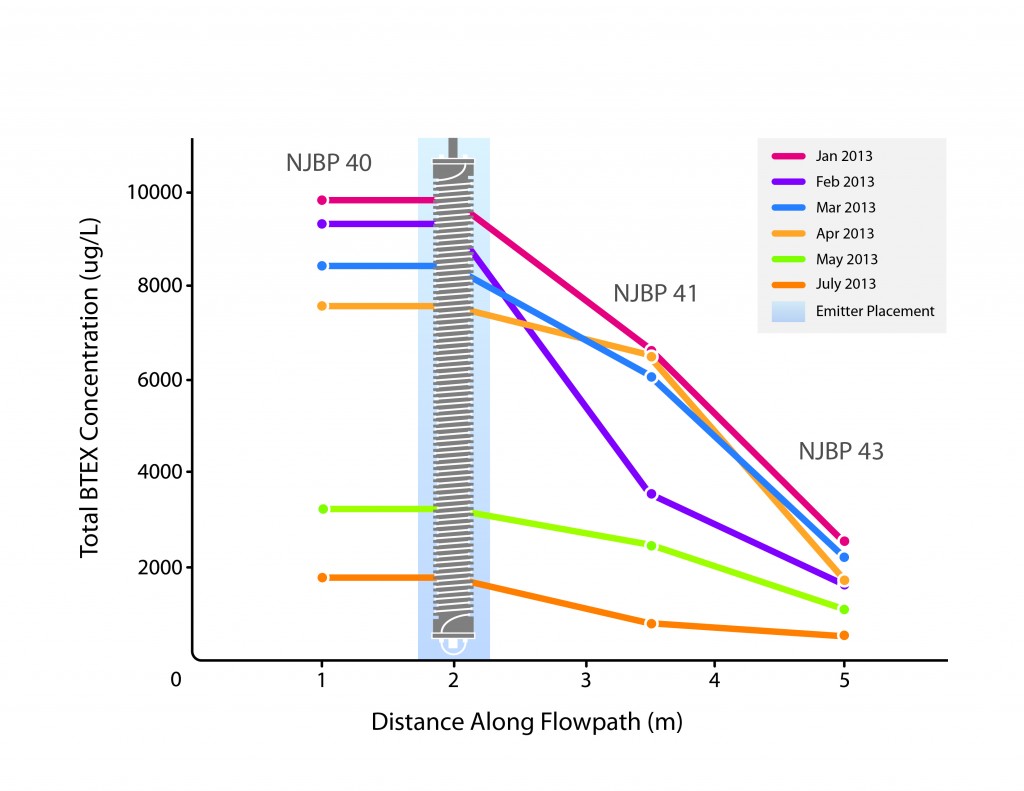

Figure 1: Concentrations of BTEX in Groundwater Along Flowpath and Through Emitter Reactive Zone. Flow is Left to Right.
Figure 1: Concentrations of BTEX in Groundwater Along Flowpath and Through Emitter Reactive Zone. Flow is Left to Right.

The results also displayed that with the addition of oxygen to the subsurface, bacterial populations went from a diverse mix of anaerobic and aerobic microorganisms, to a population that was more dominant in aerobic bacteria. The aerobic bacteria appeared to be well adapted to the >30ºC temperatures and high salinity.

Overall, the results of the laboratory microcosm experiments and the field trial prove that natural attenuation of aromatic hydrocarbons is possible in high temperature, high salinity environments, under aerobic conditions.

The addition of oxygen into the impacted subsurface at the field site increased the rate at which BTEX and other aromatic hydrocarbons degraded (enhanced aerobic bioremediation). It appears that enhanced aerobic bioremediation is what allowed MTBE to successfully biodegrade under the field conditions, although more slowly than BTEX.

As such, it was proven that enhanced aerobic bioremediation may be a viable option for the high temperature and high salinity conditions found in Saudi Arabia, for treating groundwater impacted with aromatic hydrocarbons and MTBE. The Waterloo Emitter provided a low cost, low maintenance option that successfully stimulated aerobic bioremediation in these very specific conditions.

Kashir, M., Barker, J., McGregor, R. and Shouakar-Stash, O. (2014), Aerobic Biodegradation of Hydrocarbons in High Temperature and Saline Groundwater. Remediation, 24: 77–90. doi: 10.1002/rem.21385

Solinst thanks Rick McGregor, of InSitu Remediation Services Ltd., for providing the details of this study.
