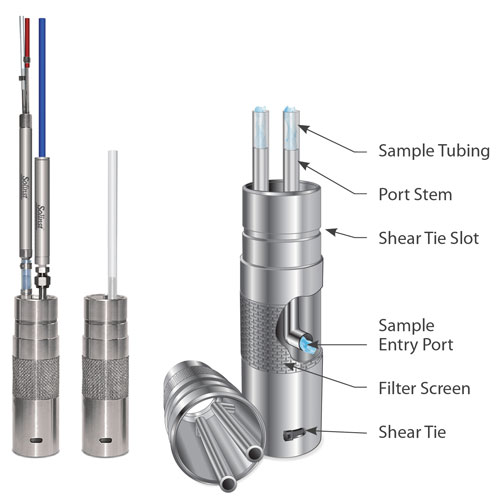

Waterloo Multilevel System Stainless Steel Ports


Waterloo System monitoring ports are constructed from 316 stainless steel. Ports are isolated by packers at each desired monitoring zone and are individually connected to the surface manifold with narrow diameter tubing. Thus formation water enters the port, passes into the stem, up into the monitoring tube attached to the stem, to its static level.

A sampling pump or pressure transducer may be dedicated to each monitoring zone by attachment to the port stem. Dual stem ports are available to allow both sampling and hydraulic head measurements from the same port. Alternatively, the monitoring tubes may be left open to allow sampling and hydraulic head measurements with portable equipment.
