Model 401 Waterloo Multilevel Systems

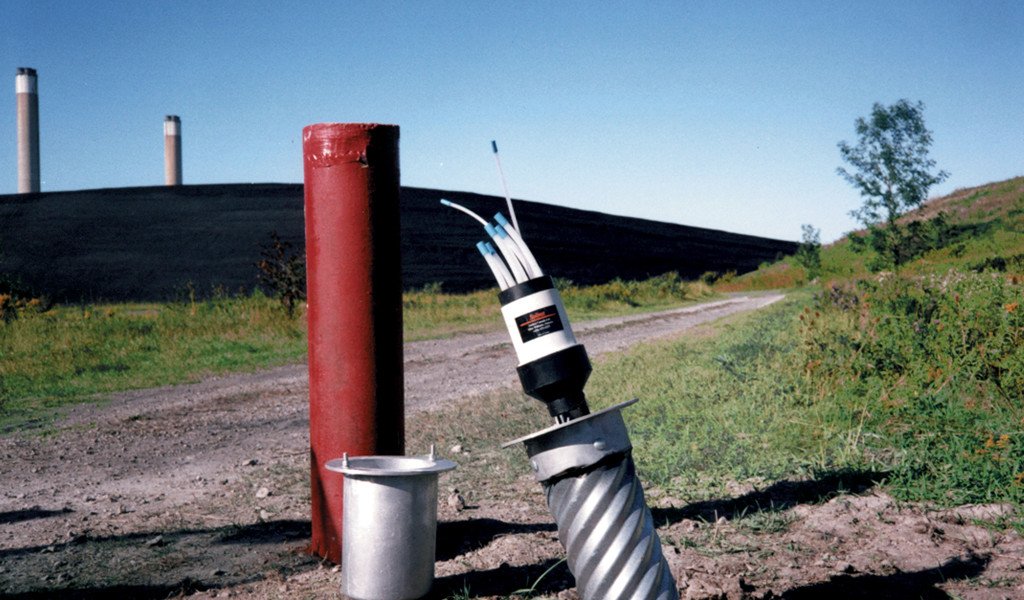

Waterloo Installation

Proven Results for Decades

solinst cmt cmt multilevel systems multilevel systems groundwater sampling continuous multichannel tubing overburden installations packers discrete zone monitoring image

The Waterloo Multilevel System allows groundwater measurements and samples from many isolated zones in a single borehole. Flexible design allows users to customize a system for each monitoring project.

Waterloo Multilevel Groundwater Monitoring System

The Waterloo Multilevel Groundwater Monitoring System is used to obtain groundwater samples, hydraulic head and permeability measurements from many discretely isolated zones in a single borehole.

Waterloo Systems have a modular design that gives excellent site and application flexibility, allowing placement of ports and packers exactly where needed. The engineered seals and dedicated sampling and level monitoring capabilities have been used to 1000 ft (300 m). The systems can be installed in 3-4" boreholes, or larger. Options are available to suit bedrock, overburden, or a combination application.

Waterloo Systems reduce project costs and time in the field, with fewer drilled holes, reduced site disturbance, smaller purge volumes and faster sampling. A number of systems used at one site provide detailed 3-D groundwater information, which enables superior decision-making and more accurate site and risk assessments. It allows the tracking and detection of migrating contaminants, monitoring of natural attenuation, and determines remediation performance.



CMT Multilevel Monitoring

solinst waterloo multilevel monitoring groundwater samplers groundwater sampling systems pressure transducers packers discrete zone monitoring isolating discrete zones for groundwater monitoring image

  • Low cost and easy to install in one day
  • Single tube for effective sealing
  • Ideal for shallow applications
  • In-field design flexibility
  • 7-Channel or narrow 3-Channel options

Dedicated Monitoring

solinst waterloo multilevel monitoring groundwater samplers groundwater sampling systems pressure transducers packers discrete zone monitoring isolating discrete zones for groundwater monitoring image

Waterloo Multilevel Systems have the option of using both dedicated pumps and pressure transducers at each monitoring port. This maximizes the speed at which data is obtained, avoids cross-contamination and ensures repeatable measurements. Purge volumes are reduced, which saves even more time and effort, and provides cost savings.





Webinar Replay: HydroTerra and Haley and Aldrich

The Transect Approach to Characterizing and Monitoring Dissolved Contaminant Plumes



Case Studies and Articles

solinst waterloo multilevel monitoring groundwater samplers groundwater sampling systems pressure transducers packers discrete zone monitoring isolating discrete zones for groundwater monitoring image

Waterloo Multilevel Systems Help Characterize Plume in Landfill Expansion Project

The GeoEnvironmental (GZA), a multi-disciplinary environmental consulting firm, designed and operates a pump and treat system at a large solid waste landfill in Rhode Island. GZA has been overseeing the system for the past ten years, and have successfully extracted and treated more than 10 million gallons of highly contaminated groundwater. The 230-acre…Continue Reading >



multilevel systems high resolution site characterization

High-Resolution Site Characterization with Multilevel Systems

Within the last few years, the U.S. EPA added a new focus area on high-resolution site characterization (HRSC) to their Contaminated Site Clean-Up Information (CLU-IN) website. The U.S. EPA’s definition of HRSC is: “High-resolution site characterization (HRSC) strategies and techniques use scale-appropriate measurement and sample density to define contaminant distributions, and the physical context in… Continue Reading >



Related Products

solinst waterloo emitter ideal for enhanced bioremediation applications for contaminated groundwater

Enhanced Bioremediation

The Waterloo Emitter™ is a simple, low cost device designed for the bioremediation of contaminated groundwater. It enables oxygen or other amendments to diffuse through silicone or LDPE tubing in a controlled, uniform manner. Ideal for aerobic bioremediation of MTBE and BTEX, with minimal maintenance required.



solinst waterloo multilevel monitoring groundwater samplers groundwater sampling systems pressure transducers packers discrete zone monitoring isolating discrete zones for groundwater monitoring image

3/8" Diameter Flexible Pnuematic Pump

The Micro Double Valve Pump has a remarkably small and flexible design. At 3/8" (10 mm) diameter it is small enough to sample groundwater from the open tubes of a Waterloo System.



solinst peristaltic pumps for shallow groundwater sampling

Shallow Groundwater Sampling

The rugged Model 410 Peristaltic Pump features a clear pump head for easier inspection and tubing replacement. The pump features one convenient dial for reversible flow and groundwater sampling flow rates from 40 ml/min to 3.2 L/min. Sample to 33 ft (10 m) at sea level.



solinst bladder pumps and double valve pumps

Narrow Stainless Steel Pumps

Narrow diameter stainless steel Model 407 Bladder Pumps or Model 408 Double Valve Pumps used in Waterloo Multilevel Systems reduce purge volumes and allow simultaneous purging of all zones.



solinst waterloo multilevel monitoring groundwater samplers groundwater sampling systems pressure transducers packers discrete zone monitoring isolating discrete zones for groundwater monitoring image

Laser Marked Water Level Meters

Solinst Model 102 Coaxial Cable Water Level Meters have permanent, accurate laser cable markings every 1/100 ft or each millimeter.



Well Casing & Depth Indicator

The Model 105 Well Casing & Depth Indicator detects metal well casing and measures total well depth using one probe. Ideal during well construction or decommissioning.
