Optional Flow Control Monitoring Assembly

Under flowing artesian conditions or for vapor sampling, the CMT Multilevel System can be fitted with a flow through seal assembly (Figure 22) to allow the user to collect a sample, measure hydraulic or pneumatic pressure, and prevent uncontrolled flow from the well.

cmt multilevel system flow through seal assembly

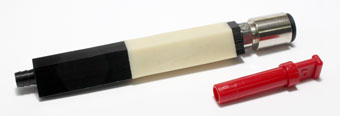

Figure 22 - CMT Multilevel System Flow Through Seal Assembly



The flow through seal assembly is tightened using a 11/32" (9 mm) wrench. Once tightened, press down on the black ring while pulling up to remove the red plug. Then push the 1/4"OD tubing into the fitting, which creates a leak proof seal.

cmt multilevel system flow through seal assembly installed

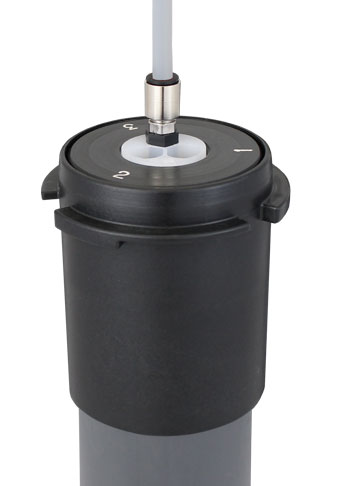

Figure 23 - CMT Multilevel System Flow Through Seal Assembly Installed
