Multilevel Monitoring is Essential. Multilevels provide the most reliable, detailed data for accurate 3-D site assessment. Important advantages include:

Eliminates contaminant mixing in long screened wells - which averages out heads and contaminants, masks narrow zones of contamination and vertical variations, underestimates the extent and concentration levels due to dilution. Multilevels monitor discrete intervals.

Prevents biases due to ambient flow - cross communication of contaminants can occur when different zones in a borehole are not isolated. Properly sealed multilevels avoid ambient flow within a well.

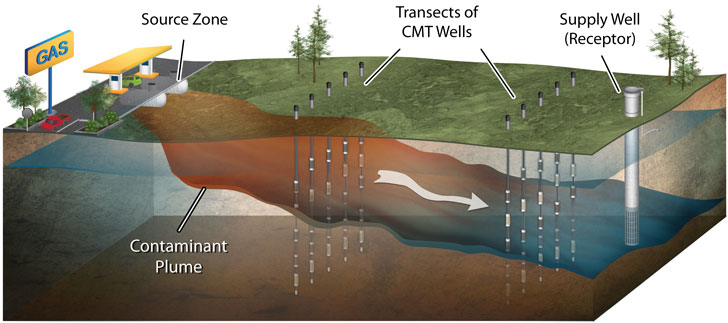

Provides data for Mass Flux Calculations - Calculating the contaminant concentration and flow rate helps determine the maximum contaminant concentration and risk to receptors. A transect of multilevels across the groundwater flow path provides data for mass flux calculations.

Allows optimized remediation design - Using data from multilevels to accurately define the thickness, concentration variations and extent of a plume.

Saves Cost - through reduced permitting and drilling costs; and because narrow tubes allow smaller purge volumes, reduced disposal costs, efficient low flow sampling and rapid response to pressure changes, all reduce field time.



multilevel systems minimize the risk of producing new contaminant pathways compared to using well clusters with overlapping adjacent sand packs source einarson 2006

Multilevel systems minimize the risk of producing new contaminant pathways compared to using well clusters with overlapping adjacent sand packs. (Source: Einarson, 2006).

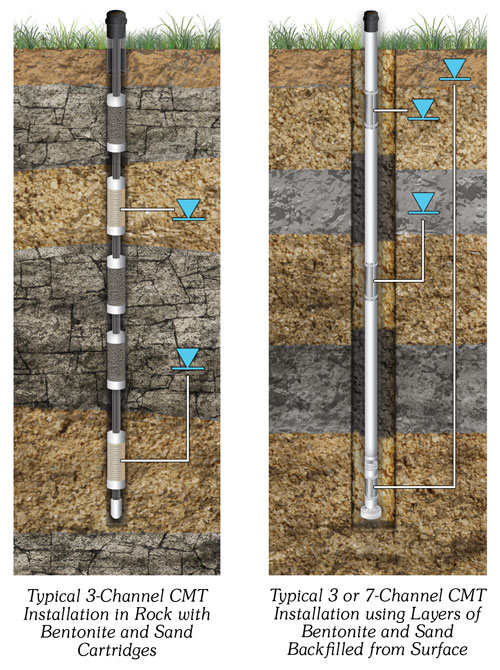

Typical Installations Showing Differential Water Levels

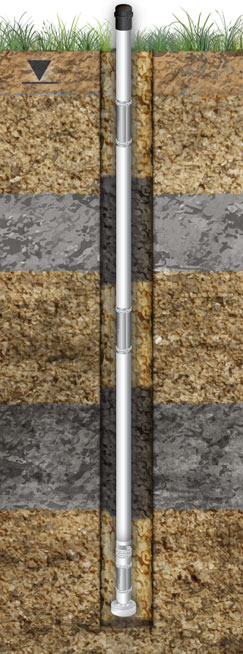

illustrations show typical 3 and 7 channel cmt multilevel installations



Solinst Multilevel Groundwater Monitoring Systems

In addition to the 403 CMT System, Solinst Manufactures two other multilevel systems, each suited to different environments and applications.

The 615ML Multilevel Drive-Point Piezometer has stainless steel monitoring ports connected using 3/4” NPT steel drive pipe and couplings. Dual barb stems allow the connection tubing to create up to 3 or 6 monitoring zones, depending on tubing size. Drive-Point Multilevel Systems can be installed simply using direct push methods, including a manual slide hammer. These systems are easy to transport with portable sampling and level monitoring options (see Model 615ML Data Sheet).

The 401 Waterloo System uses modular components of various casing lengths, sampling ports, and optional packers that are connected to form a sealed casing string. Pumps and/or transducers can be dedicated to each port. All instrument tubing and cabling is contained within these modules and collected at the top of the system at a wellhead manifold. The Waterloo System is ideal for long-term monitoring in bedrock and cased boreholes, and has been used to depths of 1000 ft. (300 m) (see Model 401 Data Sheet).
