9500 LevelSender 5

solinst levelsender 5 telemetry system for leveloggers

solinst levelsender 5 telemetry system for leveloggers

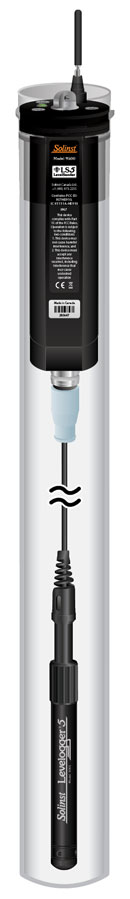

The 9500 LevelSender 5 is a simple, low cost telemetry system that is compact enough to fit inside a 50 mm (2" ) well casing. You can connect up to two dataloggers to one LevelSender 5. System setup is ideal for adding telemetry to existing Levelogger installations on Direct Read Cables.

A built-in barometer automatically compensates Levelogger water level data. The LevelSender 5 is also compatible with the LevelVent 5 vented dataloggers.

The LevelSender 5 uses 4G cellular communication to send data from connected dataloggers in the field to a Home Station PC database, as well as your smart device using email or text messaging.

For increased simplicity and convenience, Solinst provides a plug-and-play option with a preprogrammed SIM card and competitive cellular service plan managed and billed directly through Solinst.

Initial set up is done through a user-friendly software wizard at the Home Station. There is twoway communication between remote dataloggers and the Home Station, allowing remote updates as required. High and low level alarms can be set for each connected datalogger.

In addition to water level, temperature, conductivity, barometric, or rainfall data, battery level and status updates from the remote LevelSender 5 are received with each data report.
