Water Level Meter Reels
Model 101 P7 Water Level Meter
(Laser Marked PVDF Tape)
Model 101 P2 Water Level Meter
(Heat Embossed Markings on Polyethylene Tape)
With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.
|Water Level Meter Reels|
|Operating temperature of reel:||-20°C to +50°C|
|Submerged operating temperature (tape/probe):||-20°C to +80°C|
|Wetted materials (tape/probe):||P7: PVDF, Santoprene, ®Delrin, ®Viton, 316 stainless steel|
|P2: MDPE, neoprene, Delrin, 316 stainless steel|
|Probe pressure rating:||P7: Fully submersible to depth of all tape lengths|
|Reel IP Rating:||IP64 (dust and splash proof)|
|Tape lengths:||P7: 100 to 5000 ft, 30 - 1500 m|
|P2: 100 to 1000 ft, 30 - 300 m|

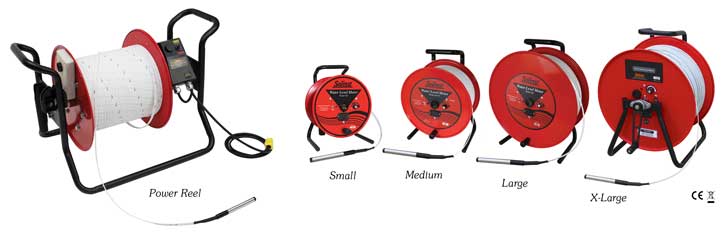

Solinst Model 101 P7 and P2 Water Level Meters are available on reels as shown below, in the following standard lengths:
|Small Reel||* 100 ft.||30 m|
|* 200 ft.||60 m|
|* 300 ft.||100 m|
|Medium Reel||* 500 ft.||150 m|
|* 750 ft.||250 m|
|* 1000 ft.||300 m|
|Large Reel||1250 ft.||400 m|
|X-Large Reel||1650 ft.||500 m|
|2000 ft.||600 m|
* Polyethylene tapes are only available in these lengths
Carrying Case: Small and medium padded nylon carrying cases
are available, as an optional extra. Their design has a convenient
shoulder strap, zippered front pocket, zippered top, and a
grommet in the base to prevent moisture build-up.

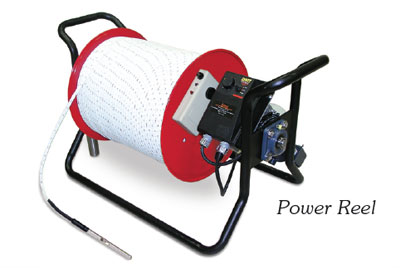

Power Reels: Power reels can be very useful to allow faster or less strenuous operation of longer lengths of tape. They are available as 12V or 110V.
Replacement Parts: Replacement probes, tapes and other spare parts are available.
