Disassembly, Decontamination and Reassembly

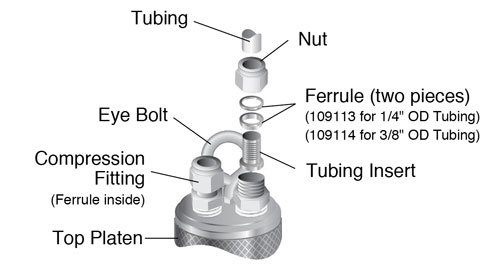

Pump Tubing Connections

solinst double valve pump top platen tubing connections



Note:

Be careful not to lose the two pieces of the ferrule if loosening or removing the nut from the compression fitting.



Double Valve Pump Disassembly

  1. Remove the Top Platen from the Pump Body and Riser. Remove the Pump Body from the Bottom Platen and slide it off the Riser.
  2. Remove the Riser from the Valve Body, being careful not to lose the Check Ball.
  3. Remove the Valve Body from the Bottom Platen, being sure not to lose the second Check Ball.
  4. Remove the Filter Retainer from the Bottom Platen, and then remove the Filter Mesh from the Filter Retainer.

Note:

The pump has been decontaminated before leaving Solinst however, you may wish to decontaminate your pump before use. The pump should be decontaminated between wells.



Double Valve Pump Decontamination

Note:

  1. Always follow your local guidelines and standard protocols.
  2. Do not use acetone on the O-rings
  1. Completely disassemble the pump.
  2. Wash all pump components with phosphate-free soap or a detergent.
  3. Rinse all components thoroughly with deionized water and dry.
  4. Replace worn O-rings as necessary, and then reassemble.



Reassembly

  1. Slide the Filter Mesh over the Filter Retainer until seated.
  2. Thread the Bottom Platen onto the Filter Retainer until the O-ring is seated and the parts are finger tight.
  3. Insert a 316 stainless steel Check Ball into the top of the Bottom Platen.
  4. Take the Valve Body and insert into the Bottom Platen until the O-ring firmly seats.
  5. Insert a 316 stainless steel Check Ball into the top of the Valve Body.
  6. Insert the bottom end of the Riser (hole downward) into the Valve Body.
  7. Slide the Pump Body over the Riser and thread onto the Bottom Platen.
  8. Take the Top Platen and while lining up the top of the Riser into the centre of the Top Platen, thread the Pump Body to the Top Platen.

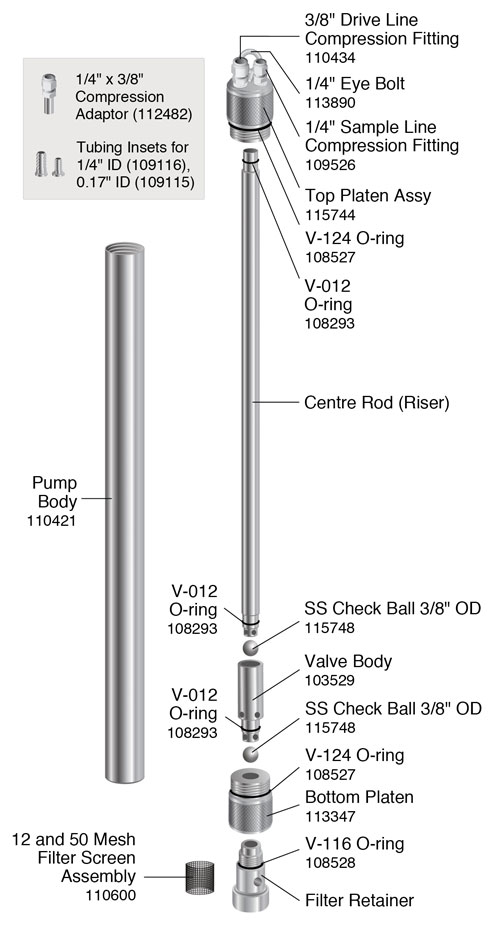

1.66" SS Double Valve Pump (112599)

solinst double valve pump groundwater samplers voc sampling dedicated pumps dedicated sampling pumps 408 double valve pump operating instructions 103181 image

(Filter Retainer and Screen Assembly (Complete) 110517)
