Peristaltic Pump Head Replacement Model 410 Mk4

Note:

See Page 2 for instructions to install the pump head on an Mk3 Peristaltic Pump.

Tools and Materials Needed

  1. Replacement Mk4 410 Peristaltic Pump Head Assembly (#113949)
  2. 9/64" (3.60 mm) Allen Key
  3. 11/32" (8.70 mm) Nut Driver
  4. Phillips Screwdriver

solinst 410 peristaltic pump head replacement parts for mk4 version

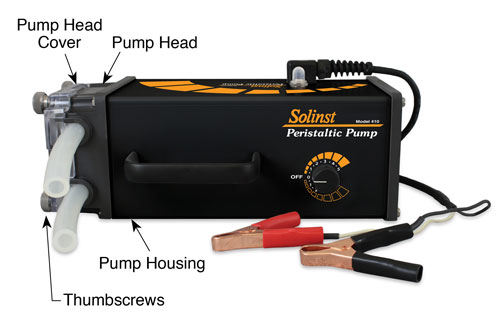

solinst mk4 peristaltic pump 112981

Solinst Mk4 Peristaltic Pump (#112981)



Instructions

Note:

The motor brace and foam tape are not required when replacing the pump head on a Mk4 Peristaltic Pump.

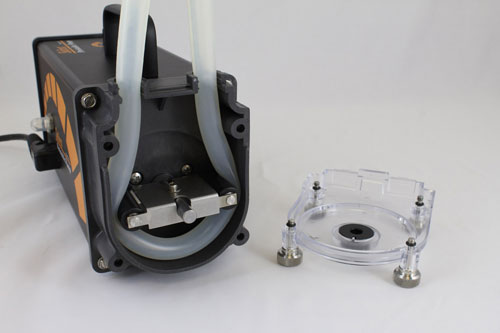

loosen the four thumbscrews on the 410 peristlatic pump mk4 head emove the pump head cover



  1. Disconnect the pump from the power supply. By hand, loosen the four thumbscrews on the pump head. Remove the pump head cover.

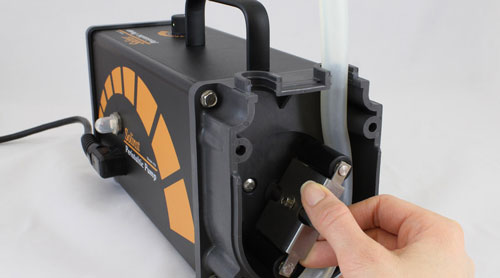

  2. manually rotate the head roller while pulling gently on the tubing to remove it from the 410 peristlaltic pump head mk4



  3. Manually rotate the head roller while pulling gently on the tubing to remove it from the pump head.
  4. solinst model 410 peristatlic pump mk4 pump head without cover showing rollers and motor shaft

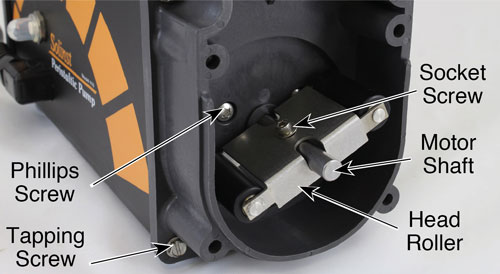

  5. Use the 9/64" (3.60 mm) Allen key and 11/32" (8.70 mm) nut driver to unscrew and remove the socket screw, nut, and washer from the head roller. Remove the head roller from the motor shaft.
  6. Unscrew the two Phillips screws from inside the pump head.
  7. Use the nut driver to remove the four tapping screws from the pump head. Remove the old pump head from the pump housing.
  8. Place the new pump head over the motor shaft and attach it to the pump housing using the two Phillips screws and four tapping screws.
  9. Rotate the shaft of the motor so the screw hole in the shaft is vertically facing. Slide the head roller onto the motor shaft and secure it using the screw, washer, and nut. Make sure the head roller turns freely and is not touching the pump head.
  10. Position the tubing around the impeller in a "U" shape with equal lengths. Turn the impeller to the 6 and 12 o'clock position and push the right hand tubing into the tubing pathway, holding near the bottom. Rotate the impeller clockwise until tubing is in place. Push the left half of the tubing into place and rotate the impeller.

Note:

To use 3/8" tubing with the new pump head, you will require Tubing Adaptor Kit #113913 (see Peristaltic Pump Operating Instructions). Tubing adaptor kits used with the original Mk1, Mk2 or Mk3 pump head will not work with the Mk4 pump head.

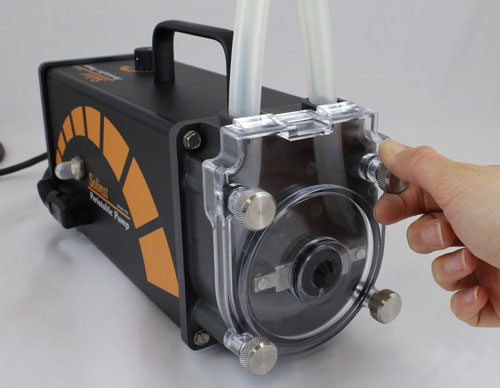

finger tighten 410 peristaltic pump head cover using thumbscrews



  1. Position the pump head cover and screw it firmly in place by hand. Thumbscrews should be finger tight. Do not use a wrench or over-tighten.
