Controller Board Assembly Replacement

Tools and Materials Needed

  1. 464 Mk3 125 psi Controller Board Assembly (#113900) (Includes Circuit Board and LCD)
  2. 3/32" Allen Key
  3. 3/16" Nut Driver
  4. Needle Nose Pliers



solinst 464 electronic control unit mk3 125 psi controller board assembly

464 Mk3 125 psi Controller Board Assembly (#113900)

Instructions

  1. Turn the Pump Control Unit off and remove the batteries.

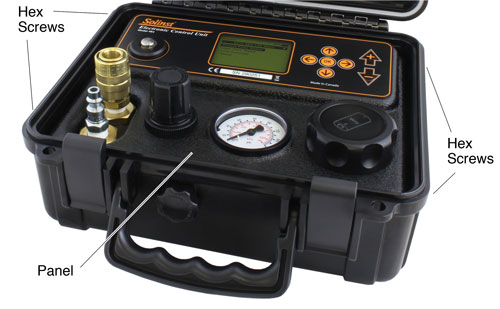

  2. Use the 3/32" Allen key to undo the four hex screws on the sides of the Control Unit.

removing solinst 464 electronic control unit 125 psi main panel

  1. Remove the panel from the Control Unit and flip it over to access the controller board assembly.

removing solinst 464 electronic control unit 125 psi main panel

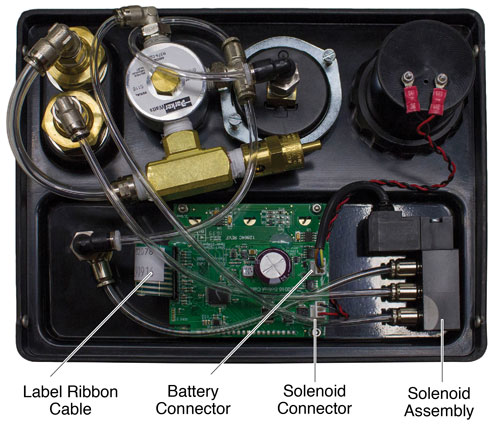

  1. To gain better access to the controller board, pull to remove the solenoid assembly from the back of the panel.
  2. Pull to remove the battery connector and solenoid connector from the circuit board.
  3. Press the tabs on the label ribbon cable to unlock and pull it from the circuit board. You may need to use needle nose pliers.
  4. Use the 3/16" nut driver to undo the four nuts holding the controller board assembly in place. Remove any washers. Be careful not to lose any washers or nuts.

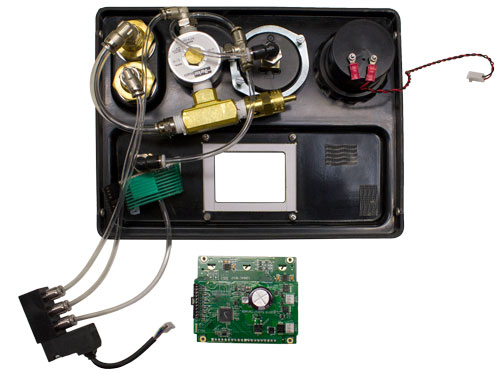

  5. Slowly pull to remove the controller board assembly from the back of the panel. This may take some force as the assembly may be stuck to the adhesive on the back of the button faceplate label.
  6. Leave any washers below the controller board assembly in place on the mounting screws.

disconnecting tubing from solinst 464 electronic pump control unit 125 psi version

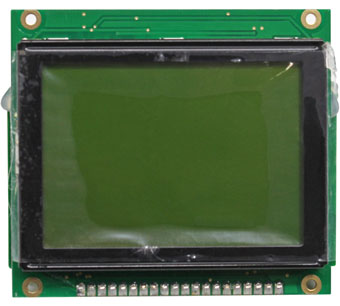

  1. Peel any protective plastic from the LCD on the new controller board assembly.
  2. Place the new controller board assembly over the four mounting screws on the back of the panel. Make sure the controller board assembly is oriented correctly.
  3. Put any washers back over the four screws. Use the nut driver to tighten the for nuts, securing the controller board assembly in place.
  4. Reconnect the label ribbon cable to the circuit board.
  5. Refasten the solenoid assembly to the panel.
  6. Plug the battery and solenoid connectors into the circuit board.
  7. Place the panel in the Control Unit case.
  8. Reinstall the batteries. Test the Control Unit to ensure proper connections were made.
  9. Reinstall the four hex screws.
