AquaVent 5 Specifications

AquaVent 5 Datalogger
Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Accuracy: ± 0.05% FS Typical
Stability of Readings: Superior, low noise
Units of Measure: m, cm, ft., psi, kPa, bar, ºC, ºF
Resolution: 0.001% FS to 0.0006% FS
Normalization: Automatic Temperature Compensation
Temp. Comp. Range: 0º to 50ºC

Temperature Sensor: Platinum Resistance Temperature Detector (RTD)
Operating Temperature: -20ºC to 80ºC
Temp. Sensor Accuracy: ± 0.05ºC
Temp. Sensor Resolution: 0.003°C

Battery Life: 8 Years — based on 1 reading/minute
Clock Accuracy (typical): ± 1 minute/year (-20ºC to 80ºC)

Maximum # Readings: 150,000 sets of readings
Memory: Slate and Continuous
Communication: 57,600 bps Solinst USB, 1200 baud SDI-12,
Modbus RS-485/RS-232 (various speeds)

Size: 22 mm x 173 mm (7/8" x 6.8")
Weight: 182 grams (6.4 oz.)
Corrosion Resistance: Baked-on coating using polymerization
technology (inside and out)
Wetted Materials: Delrin®, Viton®, 316L stainless steel, Hastelloy,
PFAS-free PTFE coating

Sampling Modes: Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View
Measurement Rates: 1/8 sec to 99 hrs
Barometric Compensation: Automatic





Models Full Scale (FS) Accuracy Resolution
M5 5 m (16.4 ft.) ± 0.3 cm (0.010 ft.) 0.001% FS
M10 10 m (32.8 ft.) ± 0.5 cm (0.016 ft.) 0.0006% FS
M20 20 m (65.6 ft.) ± 1 cm (0.032 ft.) 0.0006% FS





AquaVent 5 SP/SPX Wellhead
Materials: Polypropylene, Delrin, 316 stainless steel, Viton, Polyamide
Dimensions: 102 mm x 140 mm (4.0" x 5.5")
Operating Temperature: -20ºC to 80ºC
IP Rating: IP 64 (dust and splash proof)
Batteries: Four (4) 1.5V AA lithium batteries
Wellhead Comm. Cable Length: 4.5 m (15 ft)





AquaVent 5 Vented Cable
Wetted Materials: Polyurethane, 316 stainless steel, Viton
Diameter: Cable: 8 mm (0.32")
Connectors: 22 mm (0.86")
Lengths: 1 to 500 ft
Max. Bend Radius: 25 mm (1")
Operating Temperature: -20ºC to 80ºC



solinst datagrabber 5 datalogger usb data transfer unit

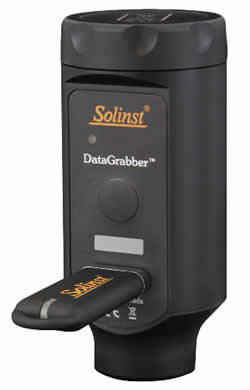

DataGrabber 5

The DataGrabber 5 is a field-ready data transfer device that allows you to copy data from an AquaVent 5 onto a USB flash drive key, with one push-button (dual USB & USB-C key provided). The DataGrabber 5 is compact and very easy to transport.



levelsender telemetry systems for levelogger

LevelSender 5 Telemetry

The LevelSender 5 is a simple, low cost telemetry system designed to send data from dataloggers in the field, to your smart device and PC database via cellular communication. LevelSender 5 stations are compact in design, which allows them to be discreetly installed inside a 2" (50 mm) well. A built-in barometer allows automatic compensation of water level data. (see Model 9500 LevelSender 5 data sheet).



solinst sts telemetry system for leveloggers

STS 5 Telemetry

The STS 5 Telemetry System provides an efficient method to send water level data from the field to your desktop. Cellular communication options give the flexibility to suit any project. STS 5 Systems are designed to save costs by enabling the self-management of data. Alarm notification, remote firmware upgrades and diagnostic reporting make system maintenance simple (see Model 9100 data sheet).



solinst rrl remote radio link telemetry system for leveloggers

RRL 5 Telemetry

The RRL 5 Remote Radio Link is ideal for closed-loop, short range applications up to 30 km (20 miles). The RRL 5 can be linked to an STS 5 telemetry station to change from a closed-loop telemetry system to one which can be accessed from anywhere through internet connectivity (see Model 9200 data sheet).
